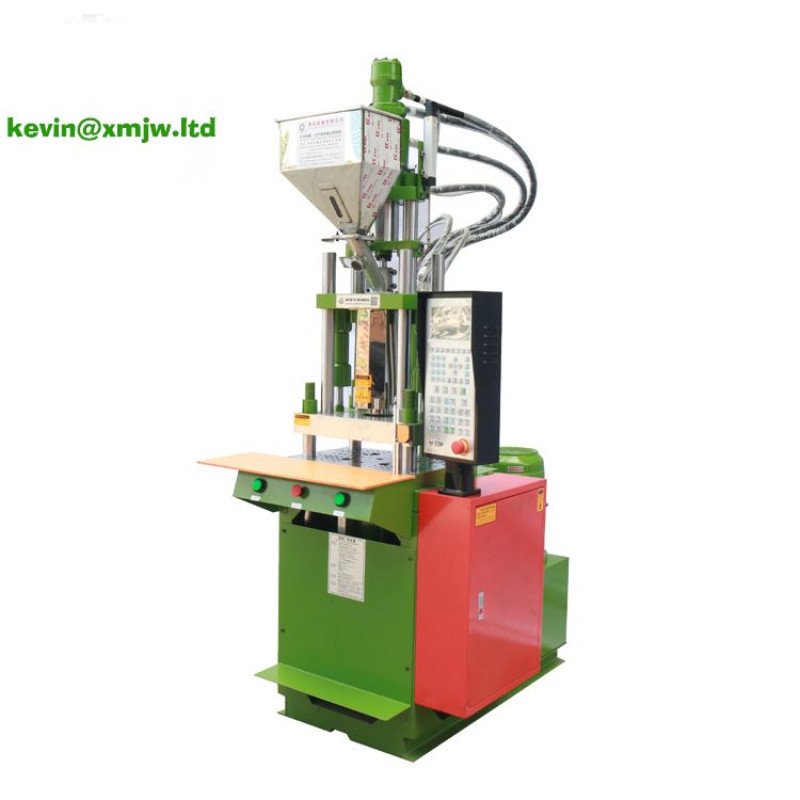

Machine Manufacturer Pigeon Ring Plastic Molding Machine Pigeon Ring Making Machinery Vertical Type

Price in reward points: 13600
  • Brand: JIEYANG
  • Product Code: CN230813873015
  • Availability: 500
- +

 Wholesale Machine Manufacturer Pigeon Ring Plastic Molding Machine Pigeon Ring Making Machinery Vertical Type Price

Parameter of 35Tons Plastic Injection Molding Machine:

Injection UnitScrew Diametermm262830
Injection Pressurekg/cm215301278886
Max.Shot Weight(PS)g566474
Injection Ratemm115
Clamping UnitClamping ForceTons35
Platen Sizemm540x380
Distance Between Tie Beremm375x205
Min.Mold Heightmm158/58
Opening Strokemm180
Enjection ForceTons1.3
Enjection Strokemm35
Power UnitMax.Hydaulic Pressurekg/cm2140
Pump Motor PowerKW/HP3.75/5HP
Total Weight KW6.3
OtherMachine WeightTons1.5
Machine Dimensions(LxWxH)m1.5x0.93x2.45
Shipping WeightTons1.8
Shipping Measurements(LxWxH)m1.76x1.15x2.3


Successful Case:



Applicable IndustriesBuilding Material Shops;Manufacturing Plant;Machinery Repair Shops;Home Use;Energy & Mining
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw;Other
Ejector Force(kN)172 kN
Ejector Number1
Ejector Stroke(mm)35 mm
Injection Rate (g/s)72 g/s
Injection speed75mm/s
Injection Stroke125mm
Injection Weight (g)83.4 g
Key Selling PointsMultifunctional
Machine TypeHydraulic
Machinery Test ReportProvided
Max Injection Pressure170.8Mpa
Max Opening280/380
Mold Height(mm)80 - 180 mm
Nozzle Out From Platens≥35mm
Number of Temperature Control3
Oil Tank Capacity80L
Open Stroke(mm)200 mm
Place of OriginGuangdong;China
Plasticizing Capacity(g/s)83.4
Platen Size490*325
Power (kW)4 kW
Product namepigeon ring making machine plastic injection
Screw diameter (mm)30 mm
Showroom LocationViet Nam
System Pressure13.7Mpa
Theoretical Shot Volume(cm³)88.3 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)1400 kg
