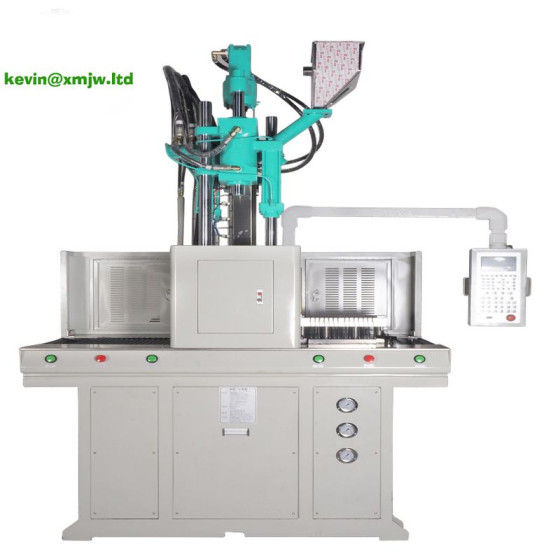

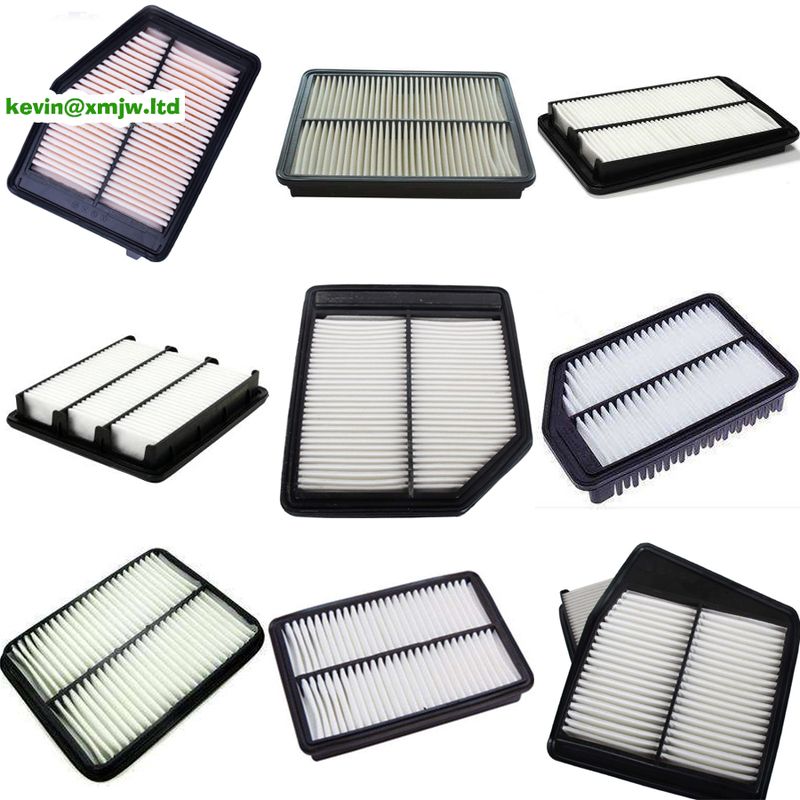

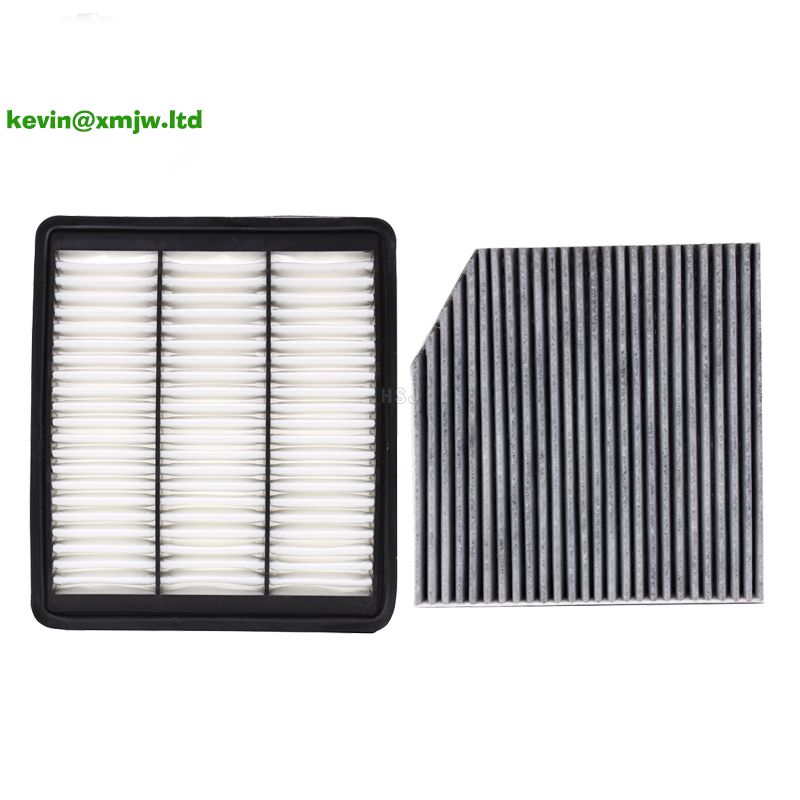

air filter hot selling air compressor filter element plastic injection molding machine

Price in reward points: 40000
  • Brand: JIEYANG
  • Product Code: CN230813458820
  • Availability: 500
- +

Quality air filter hot selling air compressor filter element plastic injection molding machine

Product Description



 Main Features:



1.Chinese/English LCD display,can memorize 60 groups of mold data.
2.Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts.It greatly improves work efficiency and saves labor.
3.It is safe because the product and delivery and inserting is not performed in molding station but the same work position.Moreover,automatic device can be used onto the machine.
4.Adopting double(pressure,flux)proportional control,the machine runs with low noise and at a high speed,It is equipped with low-voltage protective function.



Specification of vertical switch socket Injection Molding Machine:

 MODELUNITJY-850ST-DM
INJECTION UNITScrew Diametermmø32-ø45
Theoretical Injection Volumecm³162-254
Injection Weight(PS)g(oz)153(5.4)-240(8.47)
Max.Injection PressureMpa(kgf/cm²)180(1841)-115(1178)
Injection Ratecm³/s91-142
Injection Speedmm/s89
Injection Strokemm160
Screw Speed Rotationr.p.m0-200
NO.of Temperaturecontrol 3+1
Nozzle Out From Platensmm≥45
CLAMPINGUNITClamping ForceKN(tf)833(85)
Clamping Strokemm250
Min.Mold Thicknessmm230/330
Max.Openingmm480/580
(L*W)Distance Between Tie Barsmm660*370
(L*W)Max.MouldSizemm450*450
(L*W)Platen Sizemm1140*500
Ejector Distancemm100
Ejector ForceKN(tf)26.5(2.7)
OTHERS      Oli Tank Capacity L280
 Electric PowerKW(HP) 11(15)
 Heater Power KW6.4
 Machine Dimensions L*W*H2.1*1.7*2.5M
 Machine Weighttf 3.6





Machine Application

Machine Application:

        Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,usb cable,switch socket etc.



More Application:

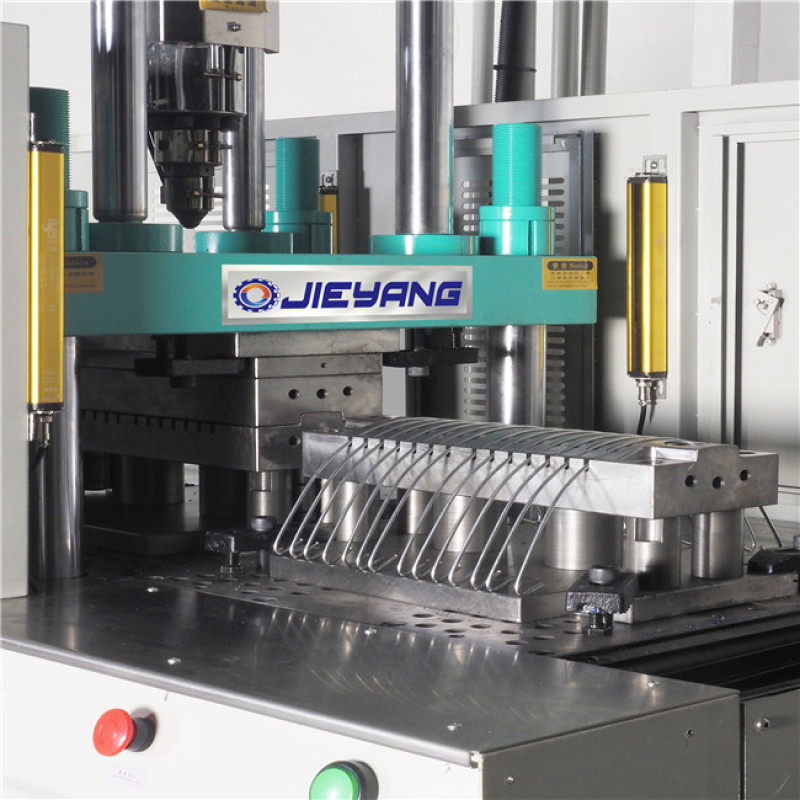

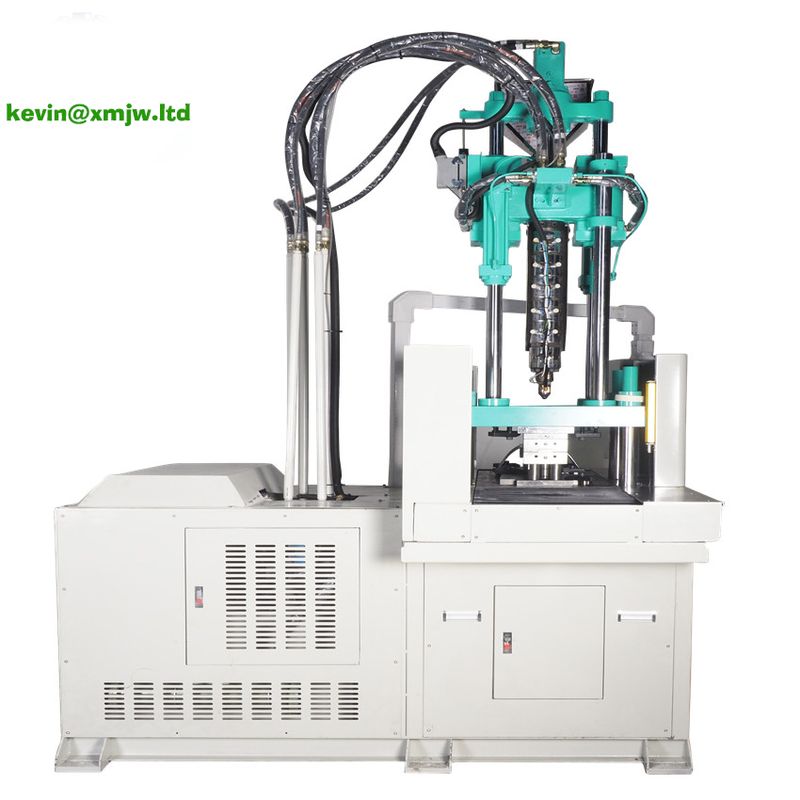

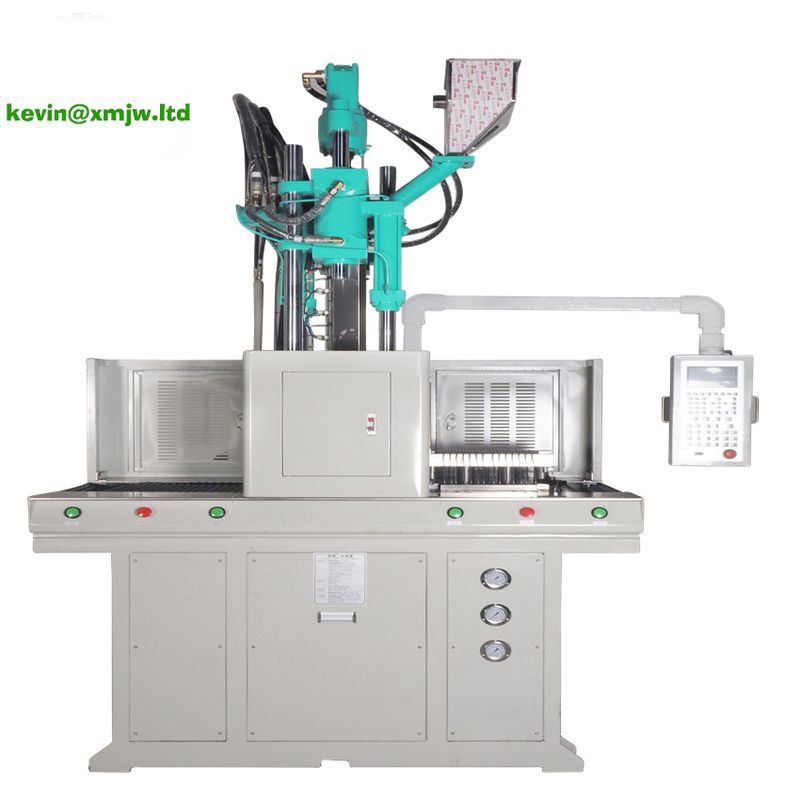

Detailed Images





Packaging & Shipping

1.We will arrabge to manufacture the machine the second day after your confirmation.

2.Before shipment,we will check and test the machine carefully.

3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.

Packaging
Dimensions1.96*1.8*2.30m
Weight3200kg





After-sales Service ProvidedOnline support
Applicable IndustriesManufacturing Plant
Automaticyes
Brand NameJIEYANG
CertificationCE
Clamping Force (kN)850
ConditionNew
Core ComponentsMotor
Distance between Tie Bars0
Ejector Force(kN)2.7 kN
Ejector Number1
Ejector Stroke(mm)75 mm
Injection Rate (g/s)142 g/s
Injection weight240g
Injection Weight (g)240 g
Key Selling PointsCompetitive Price
Machine ColorCustomized
Machine TypeHydraulic
Machine weight3.6T
Machiner Dimensions(mm)2.2*2*.4.1mm
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Mold Height(mm)230 - 330 mm
Open Stroke(mm)125 mm
Place of OriginGuangdong;China
Plastic ProcessedPP;PC;ABS;PET;PVC;FRPP/PVC;EVA;PA;PE;HDPE/PP;ABS/PP;PE/PP
Plastic TypeThermoplastic
Plasticizing Capacity(g/s)70 g/s
Power (kW)11 kW
Screw diameter32/40/45mm
Screw diameter (mm)45 mm
Screw Speed (rpm)0 - 200 rpm
Showroom LocationEgypt;Turkey;United States;Viet Nam;Brazil;Indonesia;India;Mexico;Russia;Morocco;Argentina;South Korea;Ukraine;Uzbekistan;Australia
StyleVERTICAL
Theoretical Shot Volume(cm³)240 cm³
TypePreform Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)3600 kg
