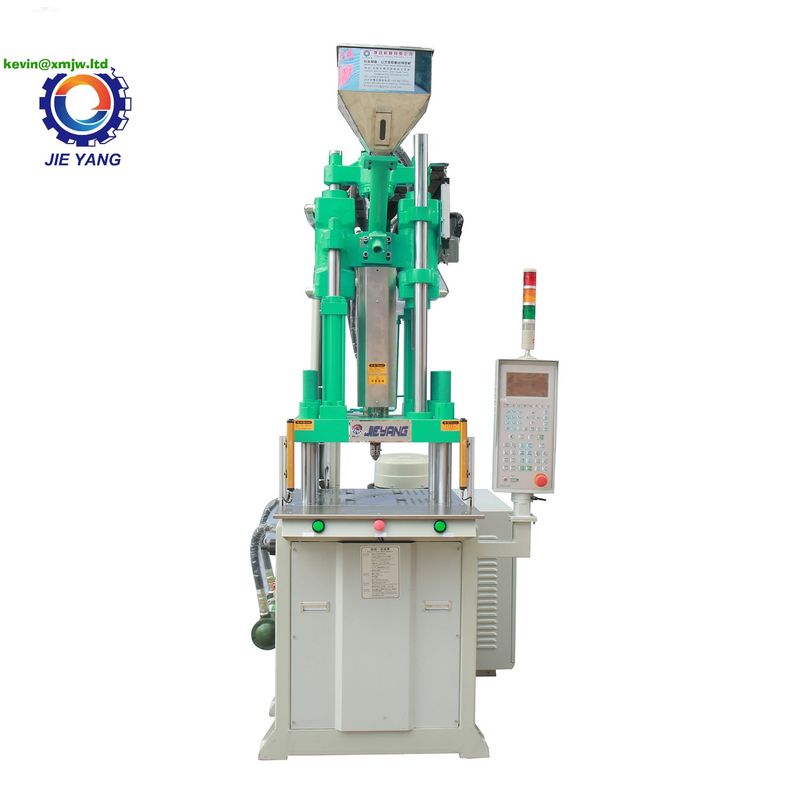

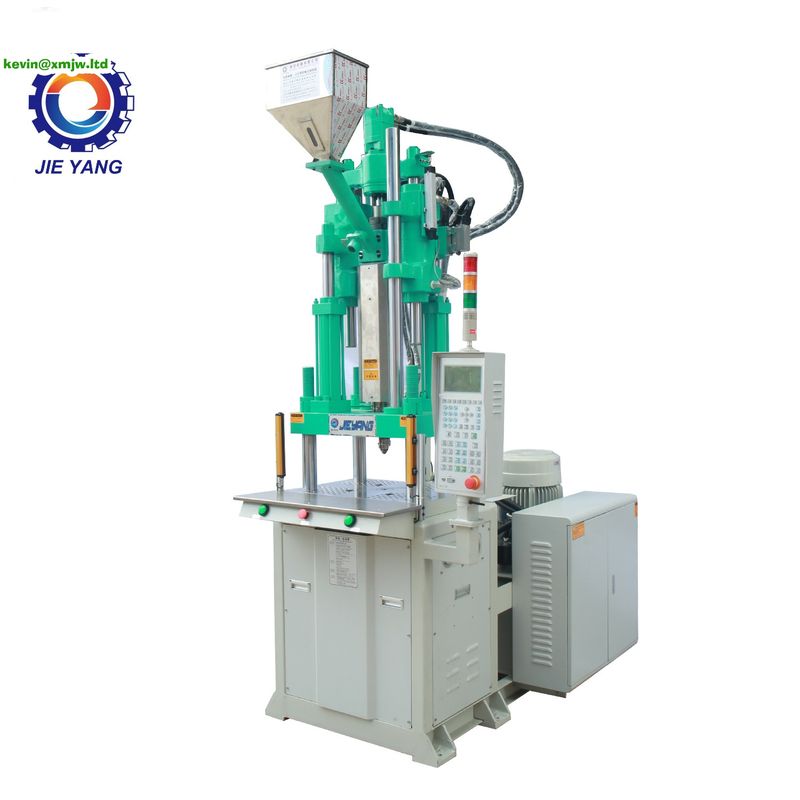

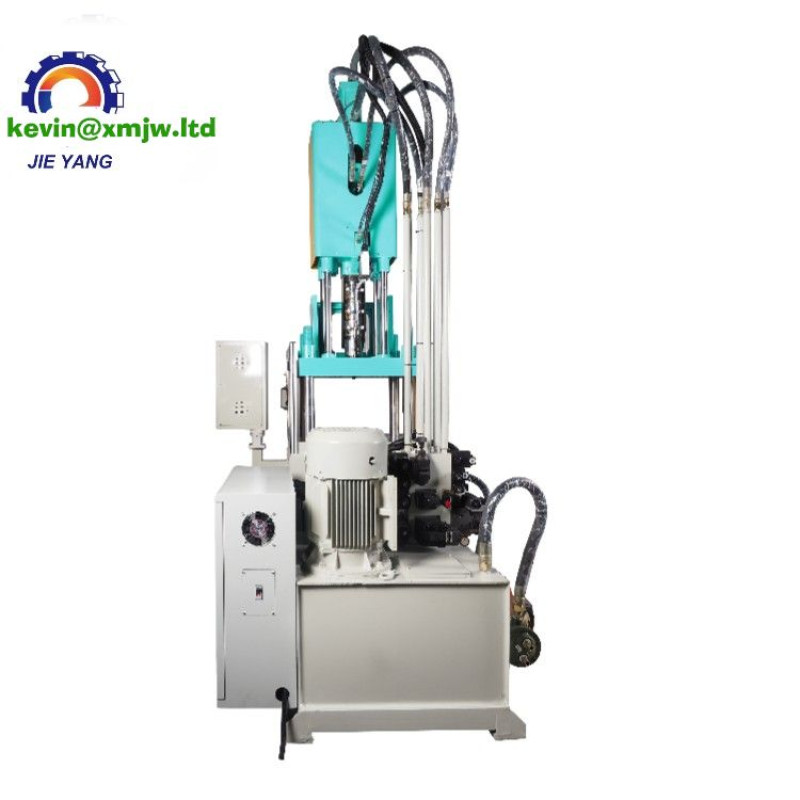

Multifunction Vertical Cutting Board Household Kitchen Fish Meat Vegetable Chopping Block Plastic Injection Molding Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230813438699
  • Availability: 500




(L*W) Platen size 980*640 mm
Applicable Industries Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company
Brand Name JIEYANG
Condition New
Core Components Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw
Distance between Tie Bars 760x420 mm
Ejector Force(kN) 45 kN
Ejector Number 1
Ejector Stroke(mm) 95 mm
Heater Power 10.7 KW
Injection Rate (g/s) 170.7 g/s
Injection speed 87mm/s
Injection Stroke 180 mm
Injection Weight (g) 333.8 g
Key Selling Points High Safety Level
Machine Dimension(L*W*H) 2.1*1.75*4.3 m
Machine Type Hydraulic
Machinery Test Report Provided
Max. Injection Pressure 115.2 Mpa
Mold Height(mm) 280 - 380 mm
NO. of Temperature control 3+1
Oil Tank Capacity 350 L
Open Stroke(mm) 280 mm
Place of Origin Guangdong;China
Plastic Processed PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid
Power (kW) 15 kW
Product name Plastic Injection Moulding Machine
Screw diameter (mm) 50 mm
Screw Speed (rpm) 0 - 250 rpm
Showroom Location Viet Nam
Style VERTICAL
System Pressure 13.7 Mpa
Theoretical Shot Volume(cm³) 353 cm³
Type Tube Shoulder Injection
Video outgoing-inspection Provided
Warranty 1 Year
Warranty of core components 1 Year
Weight (KG) 5500 kg
