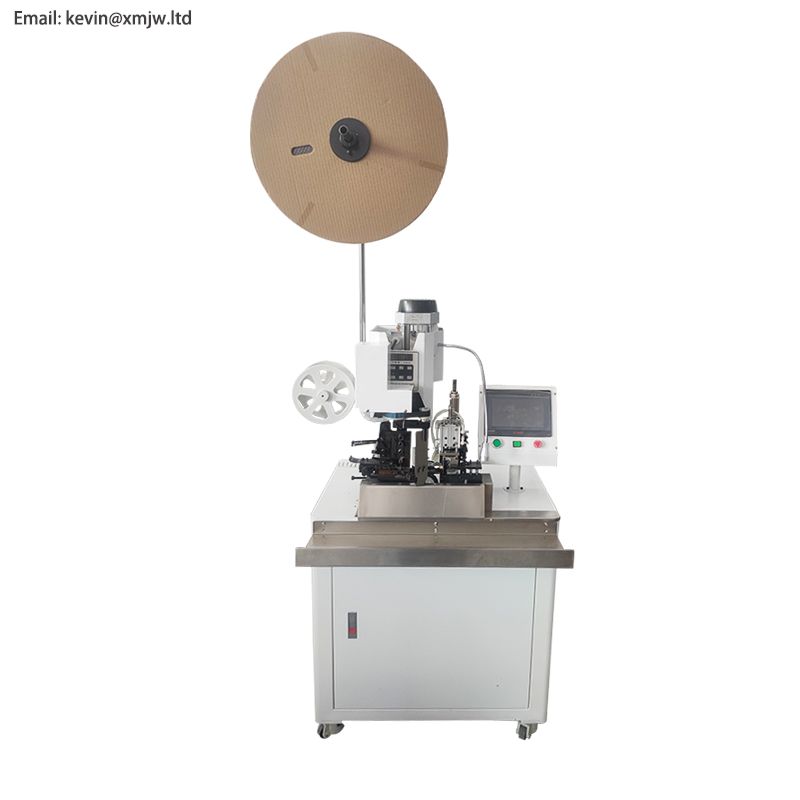

Multi-core Continuous Cable Stripping Crimping Machine Multi-pin Cable Stripping Crimping Terminal Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230809431529
  • Availability: 500

Product Description

Feature

* The multi-core cable stripping and crimping machine can complete wire feeding, wire organizing, inner core stripping, terminal crimping accurately and continuously. * The machine is equipped with an automatic waste collection device, an automatic leather suction device and a rubber material collection box to ensure the cleanliness of the work site. * The machine is equipped with an automatic cutting device to ensure that the waste belt is cut every 100mm and automatically enters the waste collection box. * The machine is equipped with an automatic wire-taking device to avoid terminal jam.
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
XINCHUANGXING
Model Number
XCX-DXXDZ3
Usage
Crimping
Power supply
AC220V/50HZ
Production capacity(8pin)
5,600 terminals/hour
Applicable wire range
Applicable wire range
Suitable wire diameter
AWG#16-AWG#30
Wire processing length
100-9999.99mm
Outer length range
above 33mm
Sheath wire stripping length
4 core wire and above sheath minimum 35mm
Air pressure
0.5Mpa
Size
600MM * 800MM * 1350MM
Weight
90KG
Air pressure 0.5Mpa
Applicable wire range Applicable wire range
Brand Name XINCHUANGXING
Outer length range above 33mm
Place of Origin Guangdong;China
Power supply AC220V/50HZ
Production capacity(8pin) 5;600 terminals/hour
Sheath wire stripping length 4 core wire and above sheath minimum 35mm
Size 600MM * 800MM * 1350MM
Suitable wire diameter AWG#16-AWG#30
Usage Crimping
Weight 90KG
Wire processing length 100-9999.99mm
