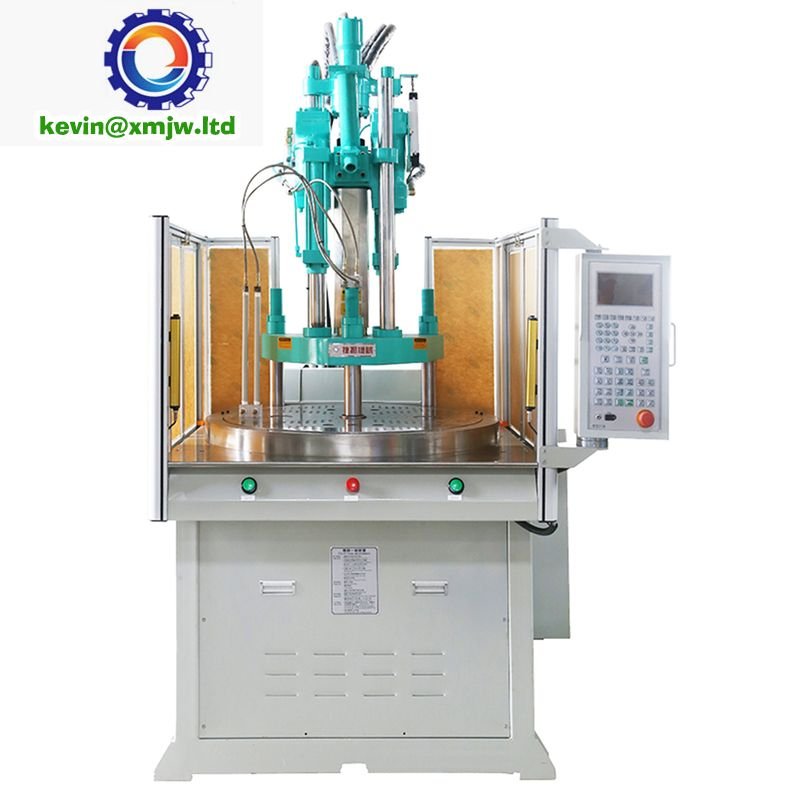

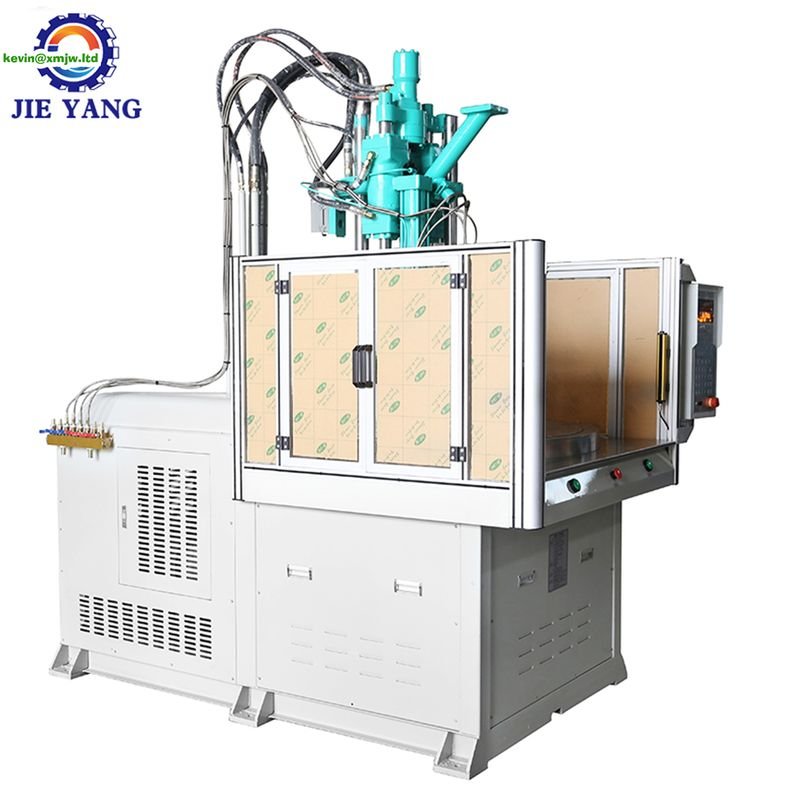

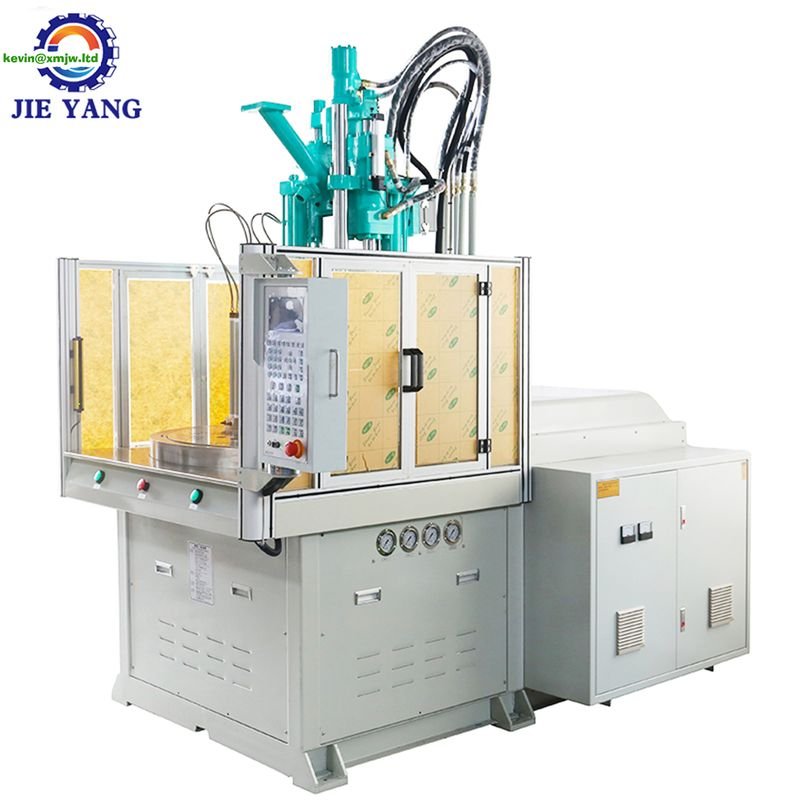

LED lamp cup automatic led modules injection moulding machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813384911
- Availability: 1000
Product Application
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
MODEL | JY-250ST | JY-350ST | JY-500ST | JY-850ST | JY-1000ST |
Screw Diameter | 30mm | 35mm | 42mm | 48mm | 48mm |
Max.Shot Weight | 74g | 106g | 176g | 227g | 260g |
Clamping Force | 35Tons | 45Tons | 55Tons | 85Tons | 120Tons |
Opening troke | 180mm | 200mm | 200mm | 255mm | 300mm |
Ejector Force | 1.3Tons | 1.76Tons | 1.76Tons | 2.1Tons | 4.8Tons |
Ejector Stoke | 35mm | 35mm | 35mm | 45mm | 45mm |
Oil Resservoir Capacity | 100L | 130L | 150L | 180L | 200L |
Pump Motor Power | 3.75KW/5.5HP | 5.5KW/7.5HP | 7.5KW/10HP | 11KW/15Hp | 14.5KW/22HP |
Power | 6.3KW | 9KW | 12KW | 16KW | 20KW |
Machine Weight | 1.5Tons | 2.4Tons | 3.0Tons | 5Tons | 6.8Tons |
Machine Dimensions(LxWxH) | 1.55x0.93x2.45m | 1.7x1.2x3.0m | 1.85x1.2x3.0m | 2.0x1.3x3.2m | 2.0x1.4x4.1m |
Shipping Weight | 1.8Tons | 2.7Tons | 3.4Tons | 5.4Tons | 7.2Tons |
Shipping Measurment(LxWxH) | 1.76x1.15x2.3m | 1.92x1.3x2.3m | 2.1x1.4x2.3m | 2.2x1.4x2.5m | 2.2x1.6x2.8m |
Main Features
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.
achine
| Applicable Industries | Manufacturing Plant |
| Automatic | Yes |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Motor |
| Distance Between Tie Bere | 470*280mm |
| Ejector Force(kN) | 172 kN |
| Ejector Stroke(mm) | 34 mm |
| Injection Rate | 84cm3/sec |
| Injection Rate (g/s) | 72 g/s |
| Injection weight | 176g |
| Injection Weight (g) | 120 g |
| Key Selling Points | Competitive Price |
| Machine Dimensions(LxWxH) | 1.85*1.2*3m |
| Machine Type | Electric |
| Machinery Test Report | Provided |
| Max.Open daylight | 420/270mm |
| Min.Mold Height | 270/70mm |
| Mold Height(mm) | 230 - 330 mm |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Plastic Type | Thermoplastic |
| Power (kW) | 7.5 kW |
| Product name | led modules injection moulding machine |
| Screw diameter (mm) | 34 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 127.3 cm³ |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Voltage | 380V 3P |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1600 kg |
