JPT MOPA M7 100W Fiber Laser - Color Metal Cut Ring Engraver

Technical Parameter:

Laser Source : JPT brand

Laser power: 20W/30W/50W /60W / 100W

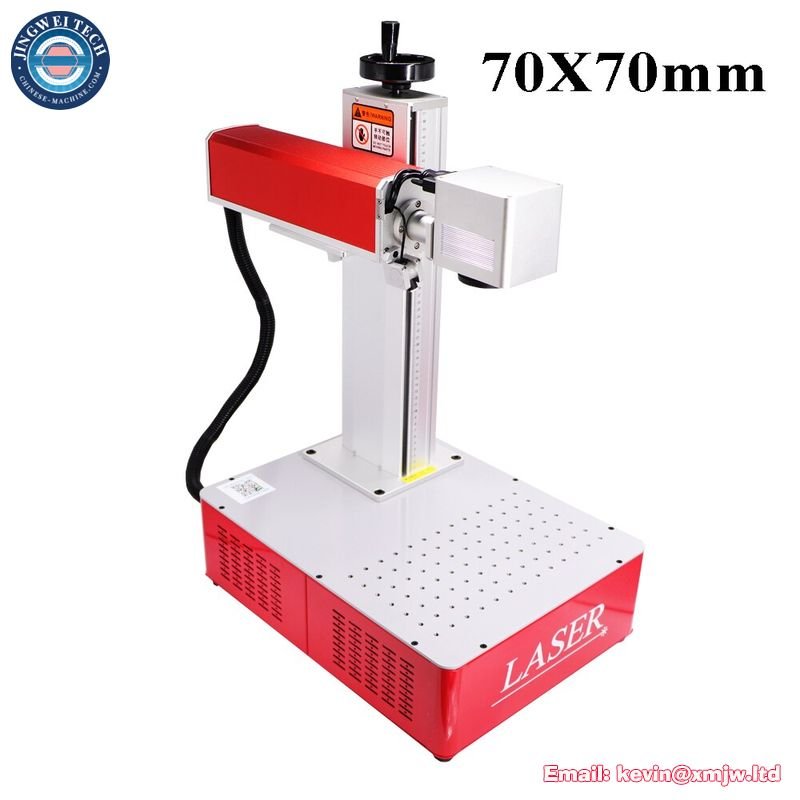

Working Area (lens) : 20W  Can choose 110*110mm / 150x150mm. 70x70mm.

                                      30W  Can choose 110*110mm / 150x150mm. 70x70mm / 175x175mm / 200x200mm

                                      50W / 60W  Can choose 110*110mm / 150x150mm. 70x70mm / 175x175mm / 200x200mm / 300x300mm

Cooling Mode : Air Cooling

Laser Wavelength: 10.64 um

Frequency of pulse : 20-100 KHz

Marking Depth: ≤0.3 mm

Marking Speed: ≤7000 mm/s

Marking Lines: 1-10 lines

Minimum Line Width: 0.01 mm

Minimum Character: 0.15 mm

Repeatability Accuracy: ±0.002 mm

Resolution Ratio: 0.1 mm

Marking Content: Text, pattern, date, bar code, etc

Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

Control Software: EZCAD ENGLISH Control Software

Graphic Format Supported: BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power: 500W

Operation Temperature: 5°C-40°C

Relative Moisture: ≤ 90%, no fog

Dimensions(L*W*H): 45 x 55 x 75 cm

Power supply requirements: 220 V or 110V

Weight: 35KG

Warranty: 24 months

Packing List:

Machine x 1

USB disk x1 (englsih Software and english manual)

Wrench x 1 kit

Power cable x 1

USB data cable x 1

Test marking plate several

Plastic Align rod x 2
