SG-5208TX hydraulic paper cutting machine with air table
Price in reward points: 5500
- Brand: SIGO
- Product Code: CN230820141731
- Availability: 500
Product Description
High quality fast speed SG-5208TX new hydraulic paper cutter with 520*520mm
Paper cutter (also referred to as paper trimmer, paper guillotine or simply a guillotine) is a tool often found in printing-house
or printing factory, designed to cut a large set of paper at once with a straight edge.
SG-5208TX come equipped with a finger guard to prevent users from accidentally cutting themselves with infraed lines or severing a
digit while using the apparatus. Doule paper pushing guides to make sure it can cut paper with high precision.
It was finished on May, 2017 and get best love for customer. If you want to buy hydraulic paper cutter, pls trust SIGO brand.
thanks
Features:
1. Taiwan joint venture main motor, import hydraulic valve, to ensure better quality cutting, suitable for cutting thickness. The
following are the same as the
2. The computer adjusts the cutting blade depth convenient and quick. The following are the same as the
3. Program optimization upgrade paper cutting time, push paper size calibration point can be set, a number of self-test function.
The following are the same as the
4. Fault code display, counting function, programmable program control operation, program control can be set to 99 sets of data,
each group 7 knife program. The following are the same as the
5. Front infrared protection after the protective cover design in line with CE standards. 6. Infrared laser on bit line. Clear and
clear.
7. Double screw double guide paper push paper. Rear platform without slot design, rear platform folding removable design.
8, mechanical pedal function: to facilitate the horse stitching and irregular objects on the cutting.
9: before the embroidery steel table durable.
Paper cutter (also referred to as paper trimmer, paper guillotine or simply a guillotine) is a tool often found in printing-house
or printing factory, designed to cut a large set of paper at once with a straight edge.
SG-5208TX come equipped with a finger guard to prevent users from accidentally cutting themselves with infraed lines or severing a
digit while using the apparatus. Doule paper pushing guides to make sure it can cut paper with high precision.
It was finished on May, 2017 and get best love for customer. If you want to buy hydraulic paper cutter, pls trust SIGO brand.
thanks
Features:
1. Taiwan joint venture main motor, import hydraulic valve, to ensure better quality cutting, suitable for cutting thickness. The
following are the same as the
2. The computer adjusts the cutting blade depth convenient and quick. The following are the same as the
3. Program optimization upgrade paper cutting time, push paper size calibration point can be set, a number of self-test function.
The following are the same as the
4. Fault code display, counting function, programmable program control operation, program control can be set to 99 sets of data,
each group 7 knife program. The following are the same as the
5. Front infrared protection after the protective cover design in line with CE standards. 6. Infrared laser on bit line. Clear and
clear.
7. Double screw double guide paper push paper. Rear platform without slot design, rear platform folding removable design.
8, mechanical pedal function: to facilitate the horse stitching and irregular objects on the cutting.
9: before the embroidery steel table durable.
Hydraulic Paper Cutter
|
|
|
|
|||
Model
|
5200H
|
5208TX
|
6700H
|
|||
Clamp Paper
|
Hydraulic
|
|
|
|||
Push Paper
|
Hydraulic
|
|
|
|||
Foot Pedal
|
No
|
Yes
|
No
|
|||
Max Cutting Width
|
520mm
|
520mm
|
670mm
|
|||
Min Cutting Width
|
30mm
|
|
|
|||
Precision
|
±0.2mm
|
|
|
|||
Max Cutting Height
|
80mm
|
|
|
|||
Safely
|
IR Bar
|
|
|
|||
Front Table Width
|
320mm
|
|
|
|||
Computer Control
|
LCD Screen
|
Big LCD Screen
|
LCD Screen
|
|||
Push Paper Guide
|
Single
|
Double
|
Single
|
|||
CTN Size
|
112*102*150cm
|
157*102*127cm
|
141*111*150cm
|
|||
G.W/N.W
|
485kg/450kg
|
550kg/485kg
|
555kg/480kg
|
Details images of Machine

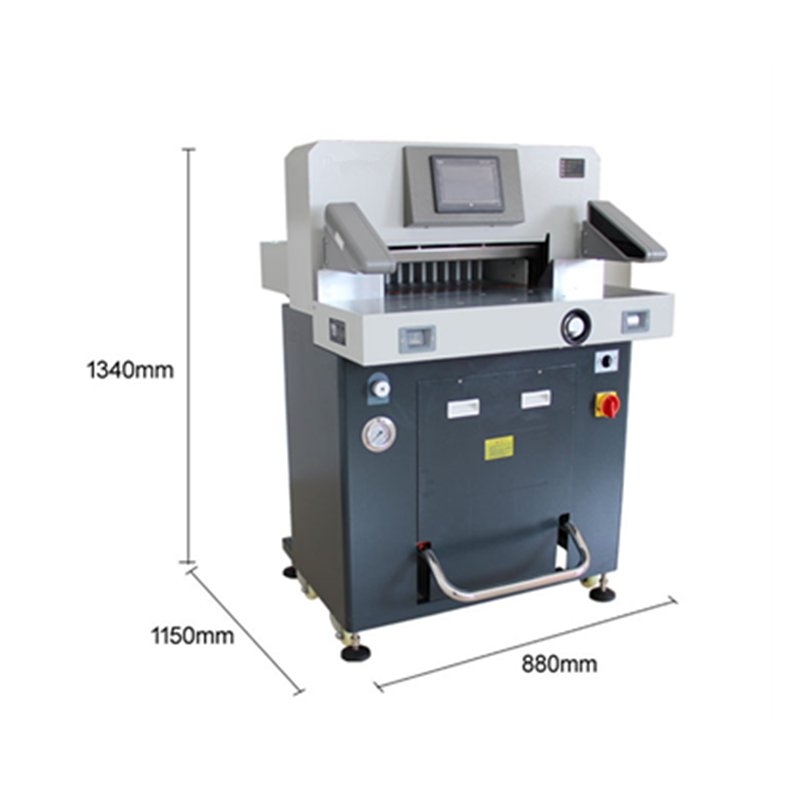

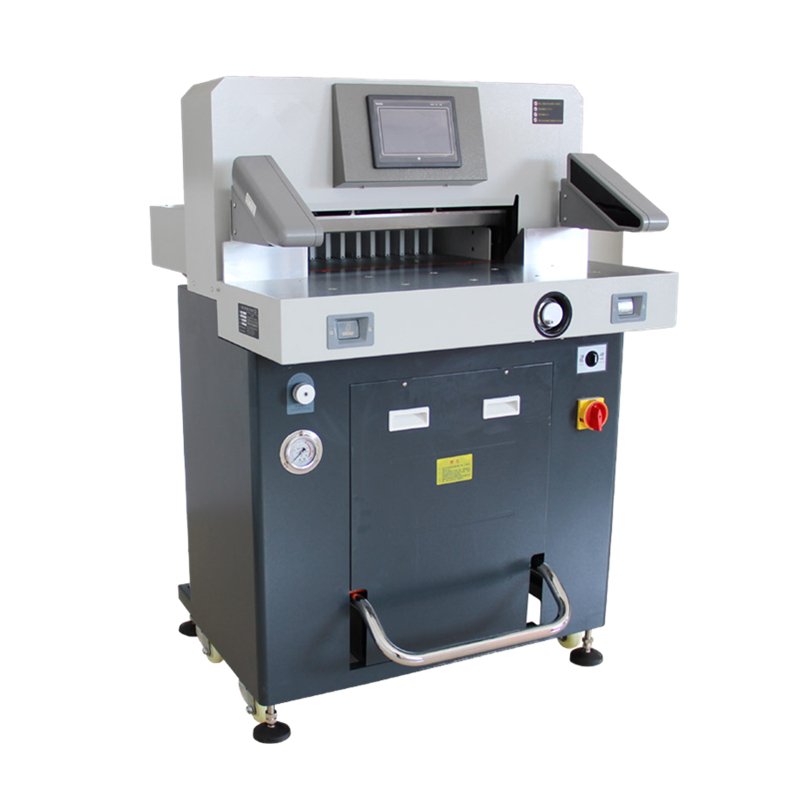

High quality fast speed SG-5208TX new hydraulic guillotine paper cutter with 520*520mm

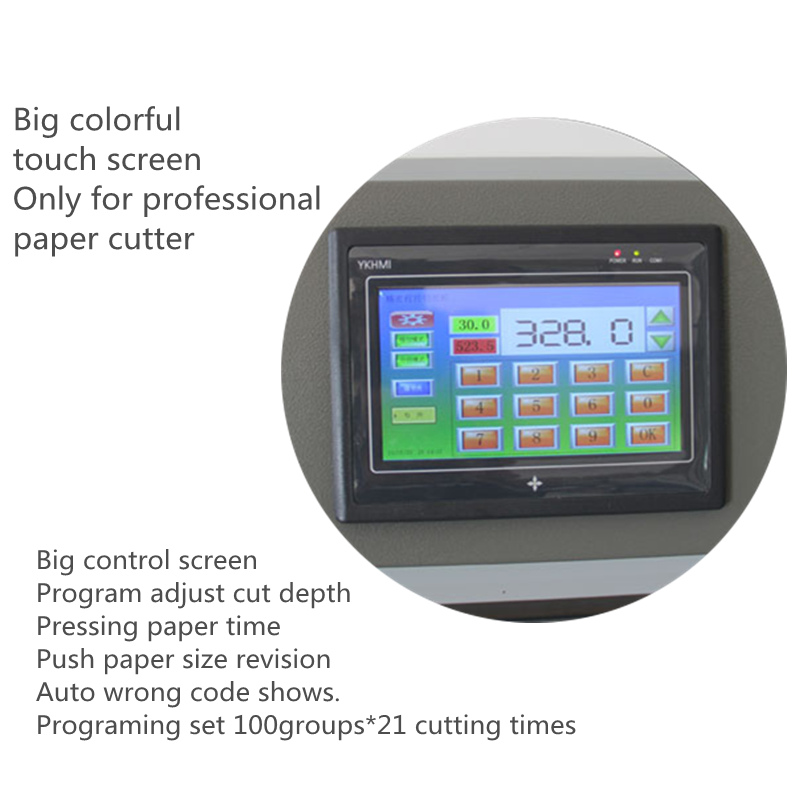

Big colorful touch screen -
Change blade button

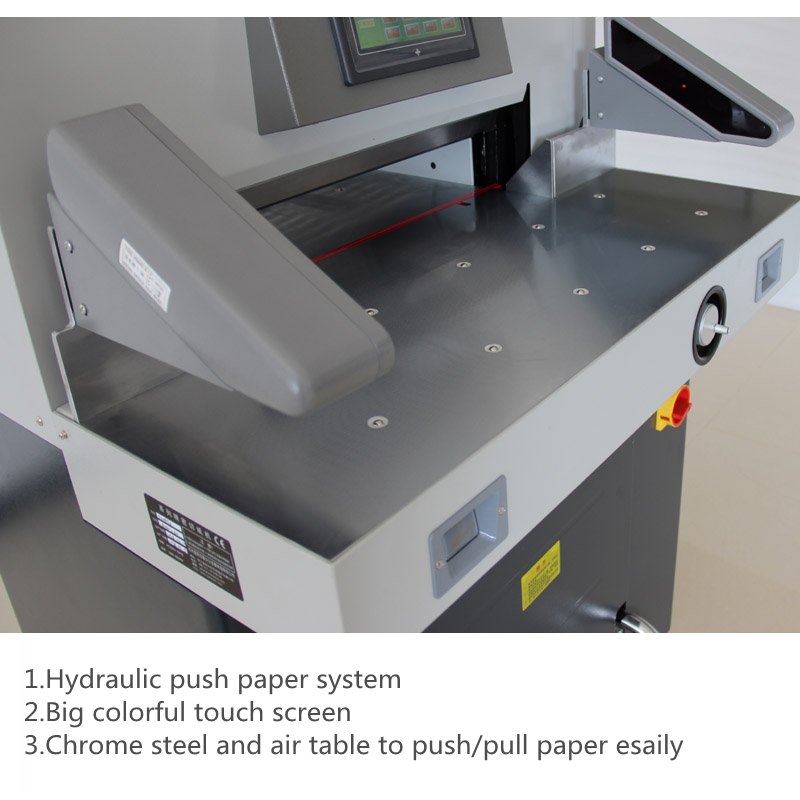

Chrome steel table
Cutting and pressing paper button
Double hydraulic system
Double shaft to push paper
Foot depal
Full closed infraed bar
High speed blade for hydrautic guillotine paper cutting machine
Intelligent electric circuit control system for5208TX
After Warranty Service | Video technical support;Online support |
After-sales Service | Engineers available to service machinery overseas |
Applicable Industries | Home Use;Printing Shops;Advertising Company |
Automatic Grade | Manual |
Brand Name | SIGO |
Certification | CE/ISO9001 |
Clamp paper | Hydraulic |
Condition | New |
Dimension(L*W*H) | 157*102*127cm |
Key Selling Points | High Productivity |
Local Service Location | None |
Max. cutting height | 100mm |
Max.Cutting width | 520*520mm |
Model | 5208TX |
Motor Power | AC 220V/2.2KW |
Place of Origin | Zhejiang;China |
Precision | ±0.5mm |
Product name | hydraulic program paper cutting machine |
Push paper | Hydraulic |
Showroom Location | None |
Type | Paper Cutting Machine |
Voltage | 220V/110V |
Warranty | 1 Year;1 Year |
Weight | 550KGS |
Tags: SG-5208TX hydraulic paper cutting machine, with air table
