Product Ultrasonic Welding Transducer Transducer 20khz 2000W Transducer

Price in reward points: 200
  • Brand: unbranded
  • Product Code: CN230812152254
  • Availability: 500
- +

Products Description
Ultrasonic Welding Transducer is the core component of the whole ultrasonic system, Responsible for high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode . When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
widely used in ultrasonic welding machine. It's the key for welding various plastic products, metal products or fabric products. Meanwhile, Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (ABS, PVC, PP, PE, PC, PS, HDPE, LDPE, PET, PMMA, Acetal, etc.) and fabrics (Polyester, nonwoven, Nylon, etc.).
Product Featur
1: Low Resonance Impedance High Mechanicai Quality Factor.
2:Lower Heating,Large Temperature Range; Small Performance Drift, Stable Working.
3:High Electro-acoustic Conversion Efficiency And Large Amplitude.
4:Good Material And Long Lifetime

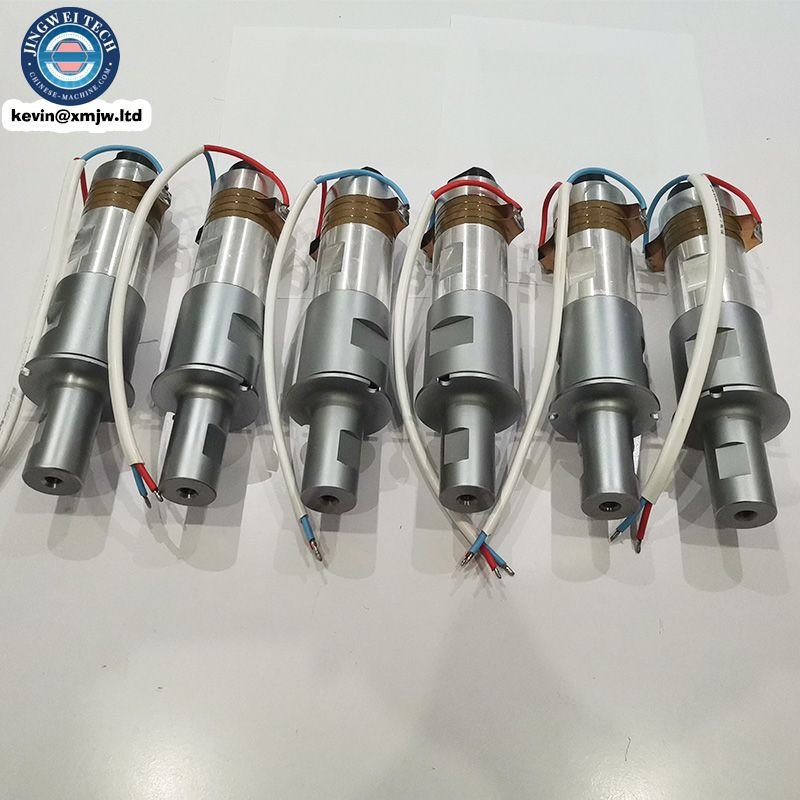

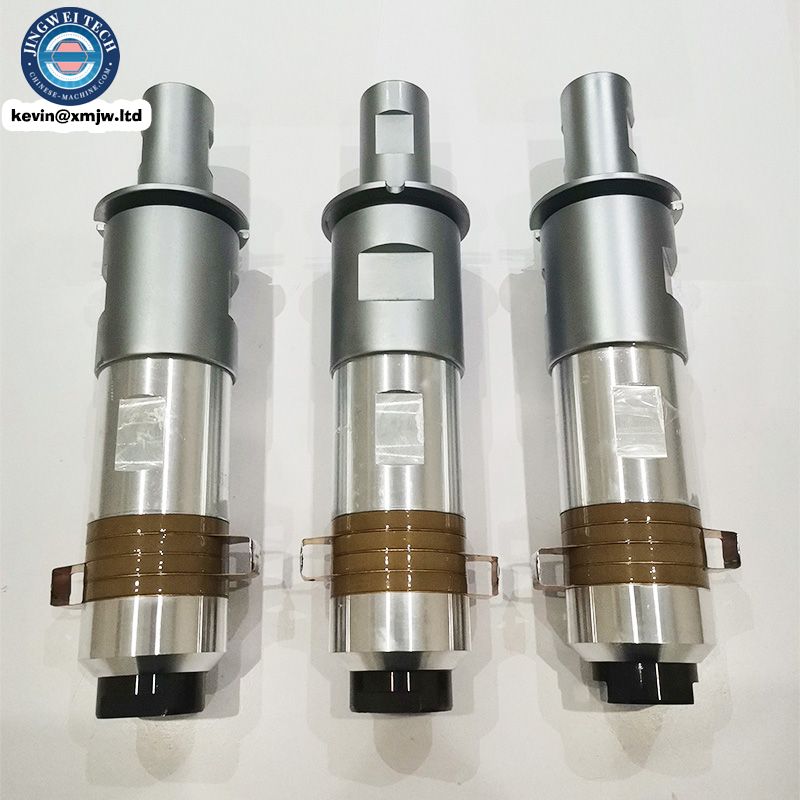

Product Picture
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!-----
Contact Us Now
Product Paramenters

Instruction of use:

& The frequencies of the ultrasonic transducer, booster and horn must be matched with each other.
& The frequencies of horn and booster should be lower than the frequency of transducer.
& connection surface must ensure vertical and flatness, and the connection torque must be appropriate.
& The operating temperature of the ultrasonic transducer should be lower than 60 °C, and the input power should be lower than the rated power.
Product Usage Scenarios
Recommend Products
15khz Ultrasonic Generator
Ultrasonic Welding Machine
Ultrasonic Welding Horn
After Warranty ServiceVideo technical support
Applicable IndustriesHotels;Building Material Shops;Machinery Repair Shops;Manufacturing Plant;Food & Beverage Factory;Restaurant;Retail;Food Shop;Printing Shops;Construction works;Energy & Mining;Advertising Company
ApplicationUltrasonic Mask Welding Transducer
Core ComponentsLong Working Life
Key Selling PointsLong Working Life
lnput power220V
Machine TypeWelding Manipulator
Machinery Test ReportProvided
Marketing TypeNew Product 2023
MaterialStainless steel
Piezo Size50*20*6 P8
Place of OriginBeijing;China
Product nameultrasonic welding transducer
Showroom LocationTurkey;Viet Nam;India;Russia
Usageultrasonic welding
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)6
