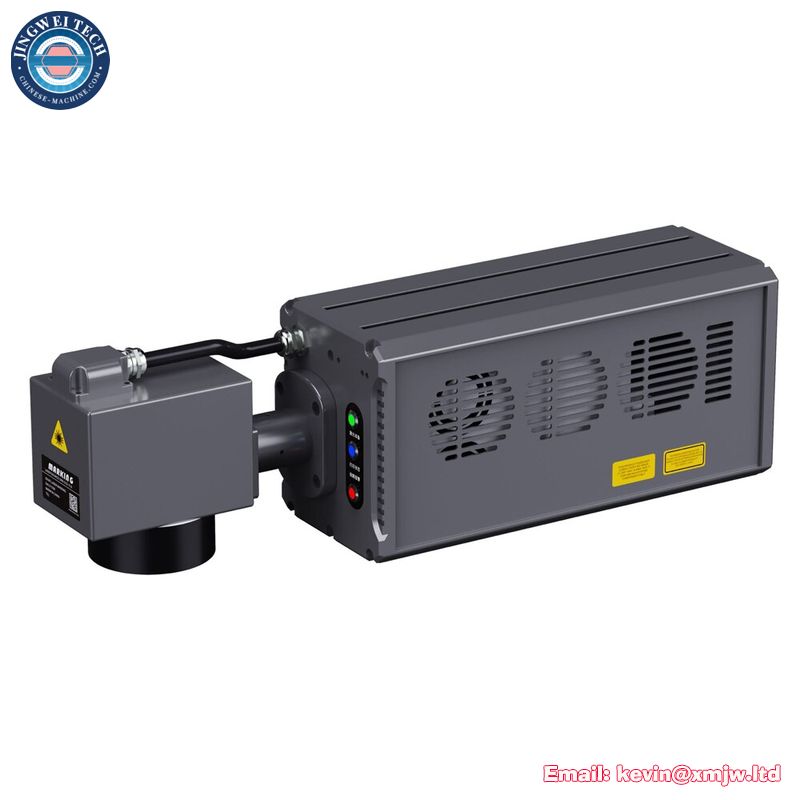

Flying Fiber Laser Metal Marking Machine MAX 20W 30W 50W Touch Screen Remote Control DIY Marking Metal Stainless Steel

Technical Parameter:

Laser Source : MAX brand

Laser power: 20W/30W/50W

Working Area (lens) : 20W  Can choose 110*110mm / 150x150mm. 70x70mm.

                                      30W  Can choose 110*110mm / 150x150mm. 70x70mm / 175x175mm / 200x200mm

                                      50W  Can choose 110*110mm / 150x150mm. 70x70mm / 175x175mm / 200x200mm / 300x300mm

Cooling Mode : Air Cooling

Laser Wavelength: 1064nm

master control： 10.2 inch touch controller

Focus lens：Focus 165mm

Marking Speed: ≤12000 mm/s

Marking Lines: Within the marking range

Minimum Line Width: 0.0012 mm

Repeatability Accuracy: 0.003 mm

Production line speed：0~130m/min (depending on the material)

Marking Content: BMP/DXF/HPGL/JPEG/PLT

About Software:

1. Multilingual：English, French, Spanish, German, Chinese, Russian, Arabic, etc

2. Administrative Permissions： Multi user management rights

3. Operation System: Linux

4. Inkjet mode： Static, analog and encoder printing mode

5. Reserved signal: Start printing, printing status, printing completion, fault alarm

6. data protection： With power-off data protection function

7. Missing print monitoring：False triggering due to material reflection, providing overspeed alarm function

Support Type：

1. Chinese and English, numbers, traditional Chinese and other standard fonts

2. File format: BMP/DXF/HPGL/JPEG/PLT

3. bar code: CODE39、CODE128、CODE126、QR、

.

Power consumption: 500W

Operation Temperature: The external temperature is 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration

Power supply requirements: 220 V or 110V

Weight: Laser nose part: 6.5kg Flight bracket part: 30kg

Warranty: 24 months

Packing List:

1 Laser equipment

2 Control system

3 Photoelectric inspection switch

4 Synchronizer

5 Flight stand

6 Debugging toolbox

7 One copy of mechanical and circuit diagram

8 Instruction, warranty and certificate
