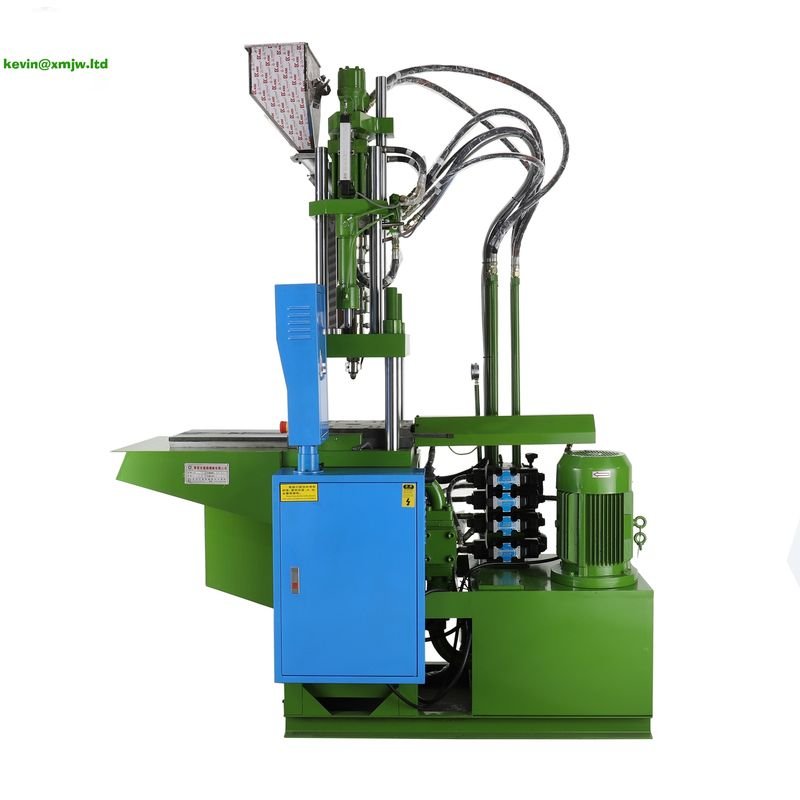

PC TR60 TR90 Acetate Glasses Myopic Office Glasses Leg Making Machine Molding Machine

Price in reward points: 25380
  • Brand: JIEYANG
  • Product Code: CN230813955537
  • Availability: 500
- +


Product Overview

Detail Images


Main Features

1.In ST(standard) machine installs single sliding mold. After operates the mold to complete, the stamping die automatically slips to the operator front, is advantageous for the operation,the security is high also the end product goes against also completes in exterior.2.The multistage temperature control,the multistage projects the pressure with to project the speed, projects the back pressure not to have the section adjustment, suits each kind of precise revertex components taking shape. (Engineering plastics).3.The screw rod L/D ratio is big,is suitable for the special engineering plastics. 4.May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automation the design.5.Closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold, to the mold service life,can be lasting.6.Projects uses the two-cylinder balance -like to project the system, projects steadily is Powerful.7.Electrically controlled may move the gang to bond the demonstration, the convenient gang bonds removes with the service.8. Servo motor series can be selected according to customer needs.9.Screw and clamping force force can be selected to use.
Glasses temple
Applicable IndustriesHotels;Building Material Shops;Manufacturing Plant;Restaurant;Home Use;Construction works;Energy & Mining
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw;Other
Distance between Tie Bars470x280mm
Ejector Force(kN)14.7 kN
Ejector Number1
Ejector Stroke(mm)85 mm
Injection Rate (g/s)110.5 g/s
Injection speed88mm/s
Injection Stroke160mm
Injection Weight (g)201 g
Key Selling PointsHigh-accuracy
Machine TypeHydraulic
Machinery Test ReportProvided
Max Injection Pressure128.6Mpa
Max Opening380/480
Mold Height(mm)180 - 280 mm
Nozzle Out From Platens≥45
Number of Temperature Control3+1
Oil Tank Capacity175L
Open Stroke(mm)200 mm
Place of OriginGuangdong;China
Plasticizing Capacity(g/s)201
Power (kW)7.5 kW
Product nameJIEYANG
Screw diameter (mm)40 mm
Screw Speed (rpm)0 - 200 rpm
Showroom LocationViet Nam
Slide Size450*450
System Pressure13.7Mpa
Theoretical Shot Volume(cm³)226 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)2300 kg
