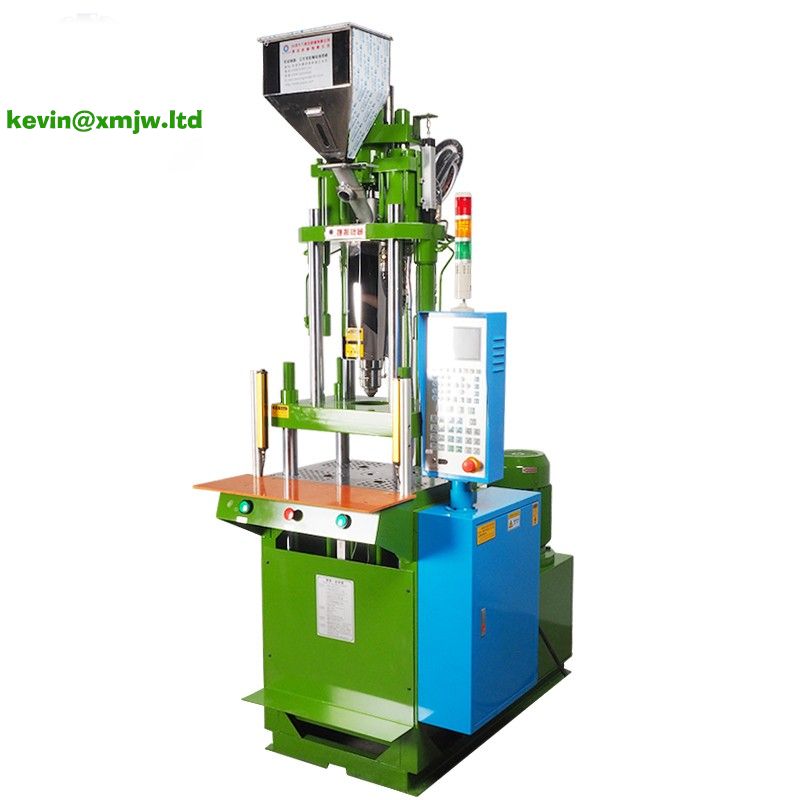

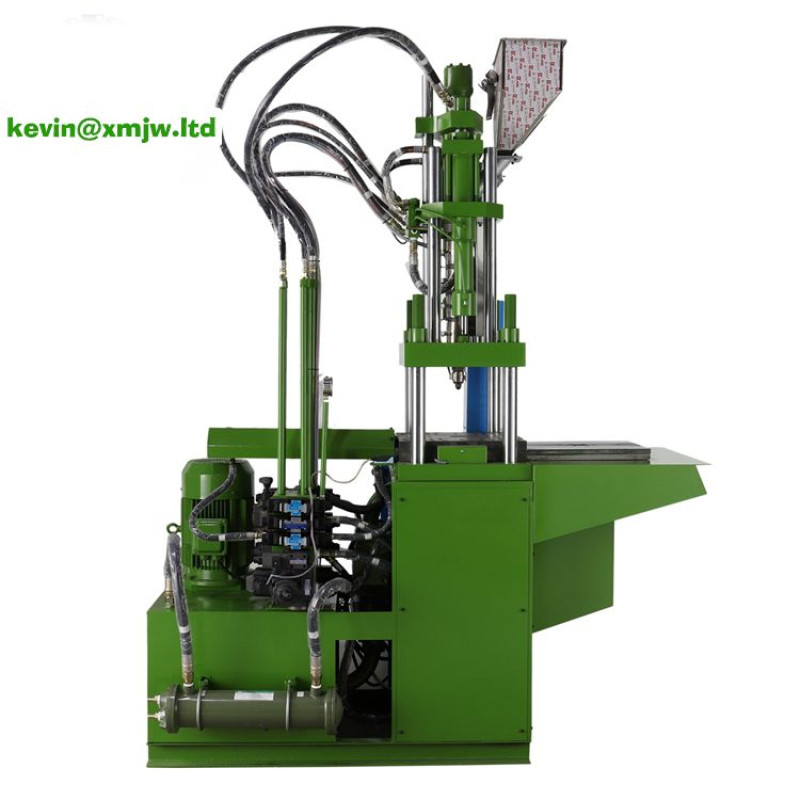

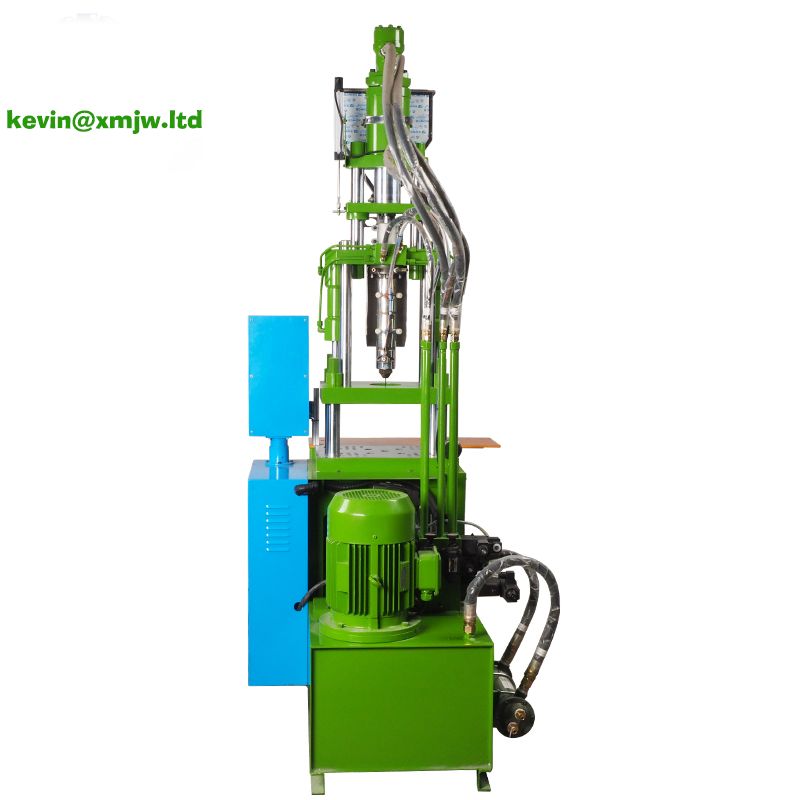

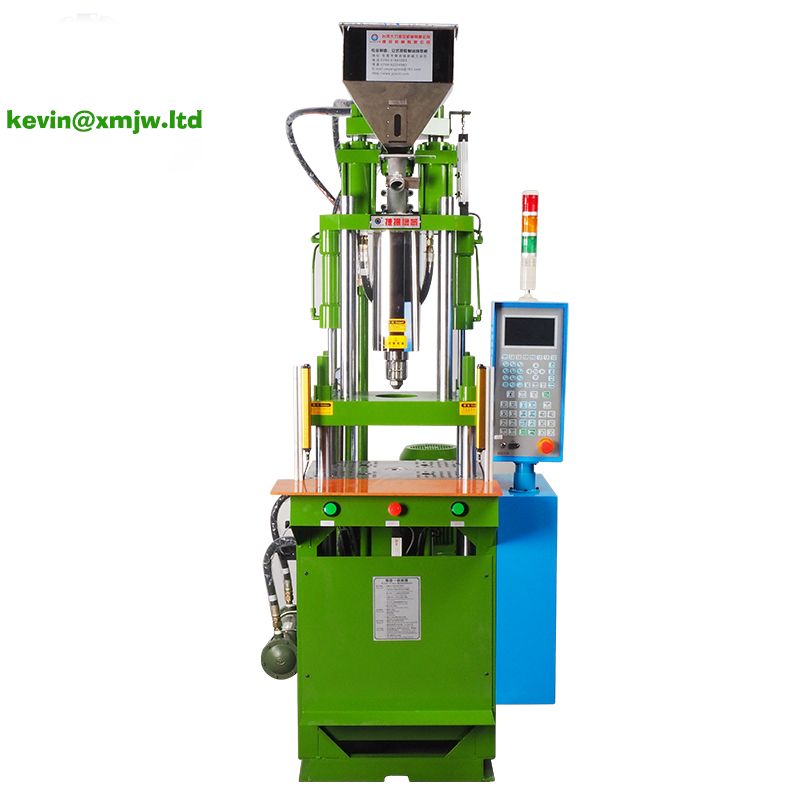

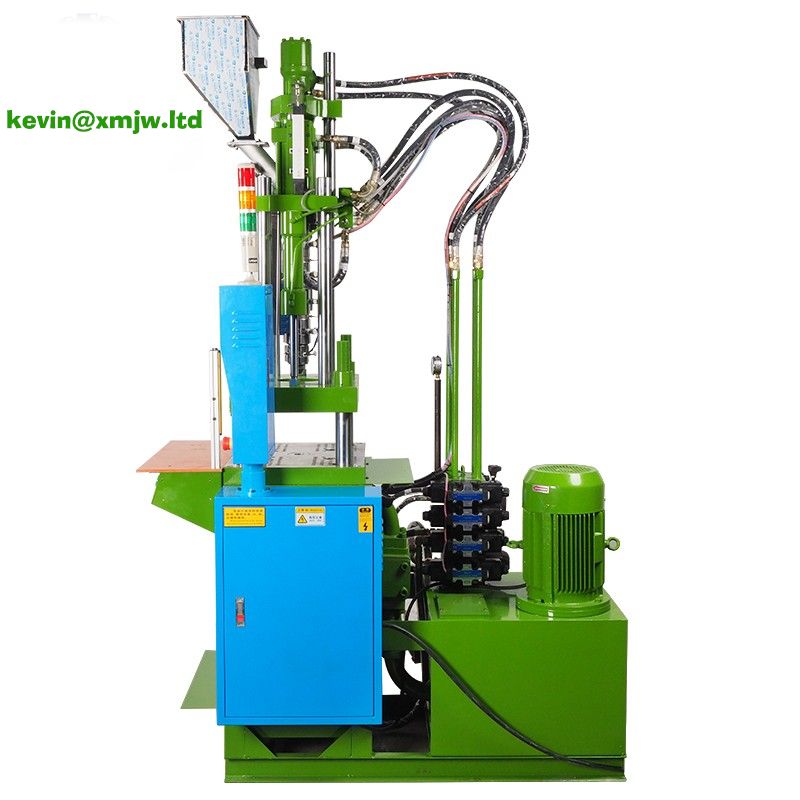

Fitness Pull Handle Making Machine Tool Handle Accessories Coated With Plastic Injection Molding Machine

Price in reward points: 17600
  • Brand: JIEYANG
  • Product Code: CN230813457723
  • Availability: 500
- +




Applicable IndustriesBuilding Material Shops;Manufacturing Plant;Machinery Repair Shops;Construction works
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw
Distance between Tie Bars410x250 mm
Ejector Force(kN)172 kN
Ejector Number1
Ejector Stroke(mm)35 mm
Injection Rate (g/s)72 g/s
Injection speed75mm/s
Injection Stroke140mm
Injection Weight (g)120 g
Key Selling PointsLong Service Life
Machine TypeHydraulic
Machinery Test ReportProvided
Max Injection Pressure133Mpa
Max Opening350/450mm
Mold Height(mm)150 - 250 mm
Nozzle Out From Platens≥35mm
Number of Temperature Control3
Oil Tank Capacity120L
Open Stroke(mm)200 mm
Place of OriginGuangdong;China
Plasticizing Capacity(g/s)120
Platen Size550*390mm
Power (kW)8.9 kW
Product nameJIEYANG
Screw diameter (mm)34 mm
Screw Speed (rpm)0 - 200 rpm
Showroom LocationViet Nam
System Pressure13.7Mpa
Theoretical Shot Volume(cm³)127 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)1600 kg
