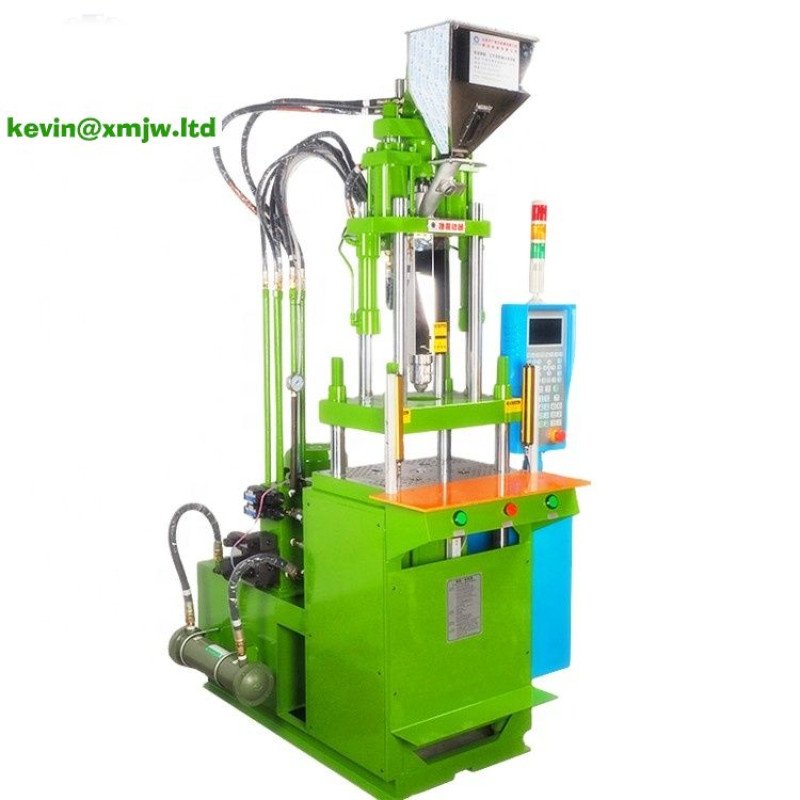

Electric Plug Making Machines Mobile Cover Making Machine Plastic Electrical Cable Lug Machine

Price in reward points: 14800
  • Brand: JIEYANG
  • Product Code: CN230813686129
  • Availability: 500
- +

Electric Plug Making Machines Mobile Cover Making Machine Plastic Electrical Cable Lug Manufacturing Machine

Detailed Images

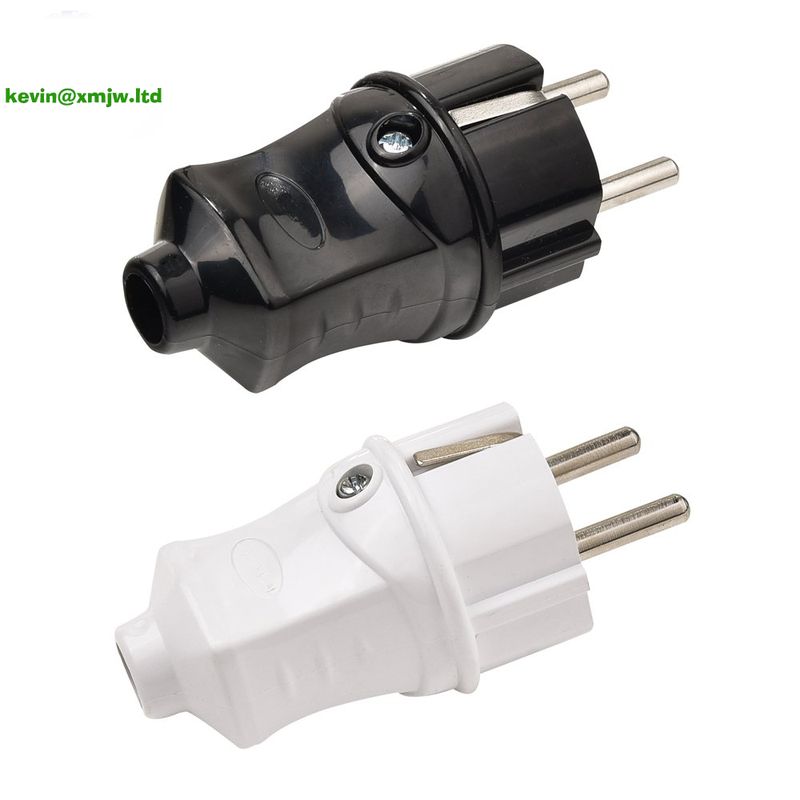

Finished Products





Product Overviews


INJECTION UNITScrew Diametermmø28
Theoretical Injection Volumecm³76.9
Injection Weight(PS)g(oz)72.6(2.56)
Max.Injection PressureMpa(kgf/cm²)196(2000)
Injection Ratecm³/s60.3
Injection Speedmm/s75
Injection Strokemm125
Screw Speed Rotationr.p.m0-200
NO.of Temperaturecontrol 3
CLAMPINGUNITClamping ForceKN(tf)343(35)
Clamping Strokemm200
Min.Mold Thicknessmm80/180
(L*W)Platen Sizemm350*225
Ejector Distancemm35
Ejector ForceKN(tf)172(1.75)
OTHERS      Oli Tank Capacity L80
 Electric PowerKW(HP) 4(5.5)
 Heater Power KW


 Machine Dimensions L*W*H1.36*0.865*2.4M
 Machine Weighttf 1.4



1.in-line screw type injection apparatus.

2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.

3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.

4.the low-pressure mold clamping device protection security.

5.the tube can lift,clean and convenient material head,fixed moldeasier.

6.can be installed with a single mode skateboards,skateboard or alternating dual mode

(L*W)Max.Mould Size400*300mm
(L*W)Platen Size550*390mm
Applicable IndustriesAdvertising Company;Manufacturing Plant
Core ComponentsMotor
Distance between Tie Bars410*250
Ejector Force(kN)172 kN
Ejector Number1
Ejector Stroke(mm)140 mm
Electric Power5.5KW
Injection Rate (g/s)120 g/s
Injection weight106.3g
Injection Weight (g)120 g
Key Selling PointsCompetitive Price
Machine Dimensions1.36*0.865*2.4M
Machine TypeElectric
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Min.Mold Thickness150/250mm
Mold Height(mm)250 - 350 mm
Open Stroke(mm)450 mm
Place of OriginGuangdong;China
Plastic TypeThermoplastic
Plasticizing Capacity(g/s)120
Power (kW)5.5 kW
Product nameinjection molding machine
Screw diameter32mm
Screw diameter (mm)34 mm
Screw Speed (rpm)0 - 200 rpm
Showroom LocationViet Nam;India
Theoretical Shot Volume(cm³)127 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)1600 kg
