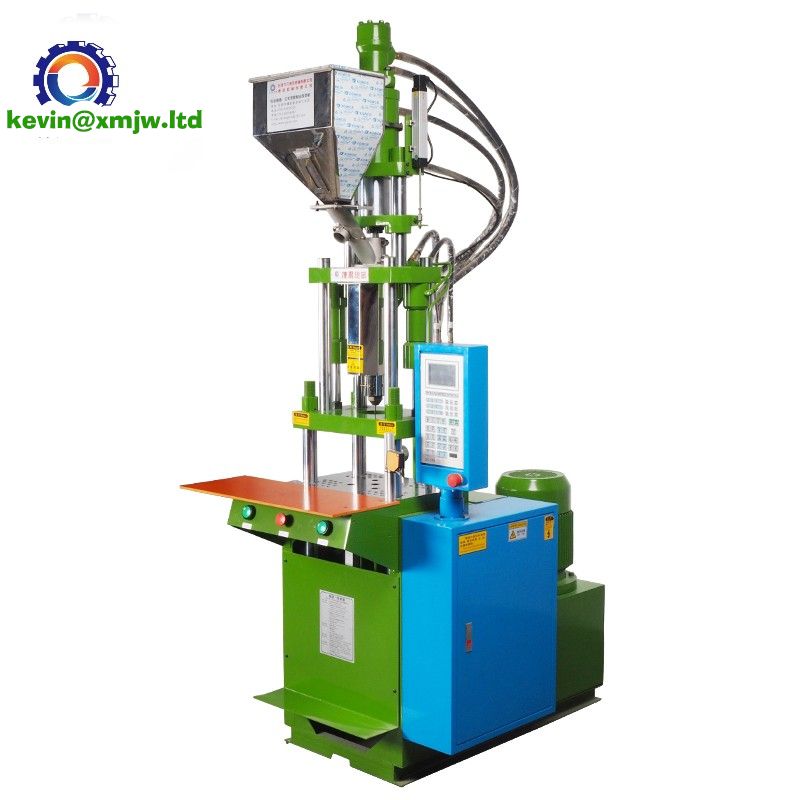

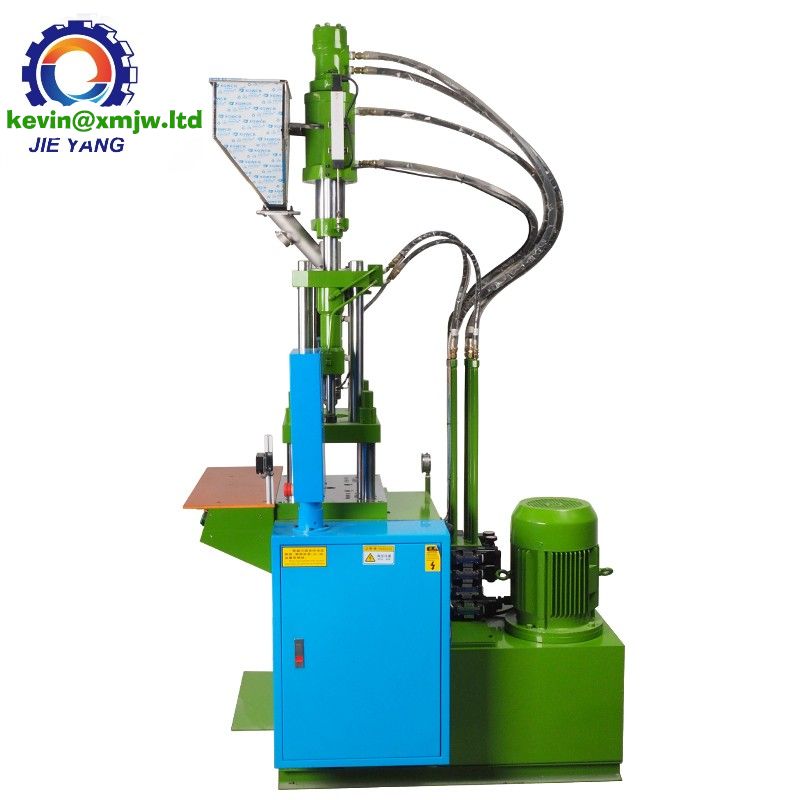

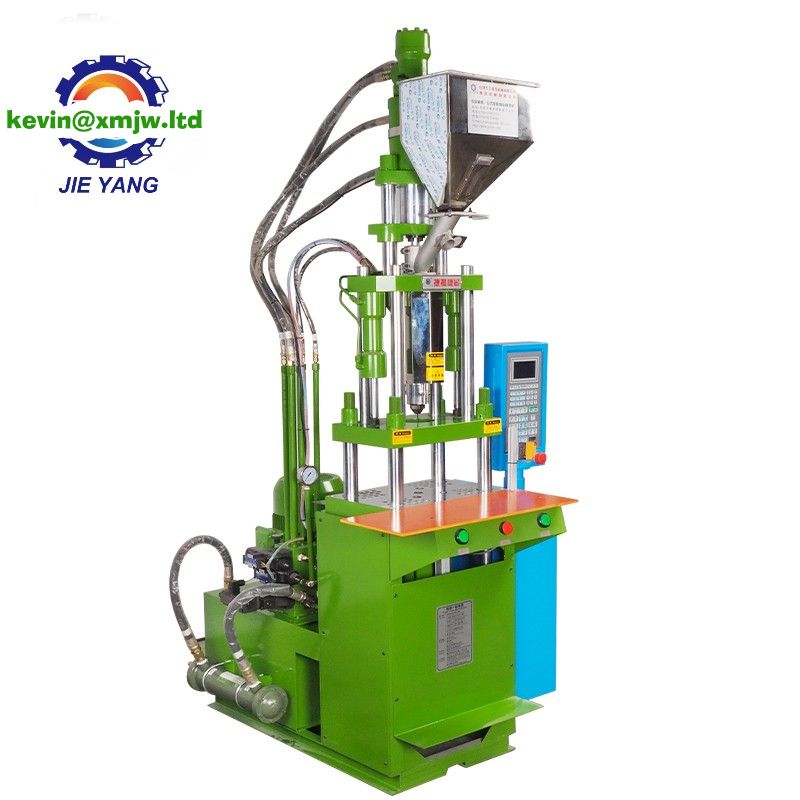

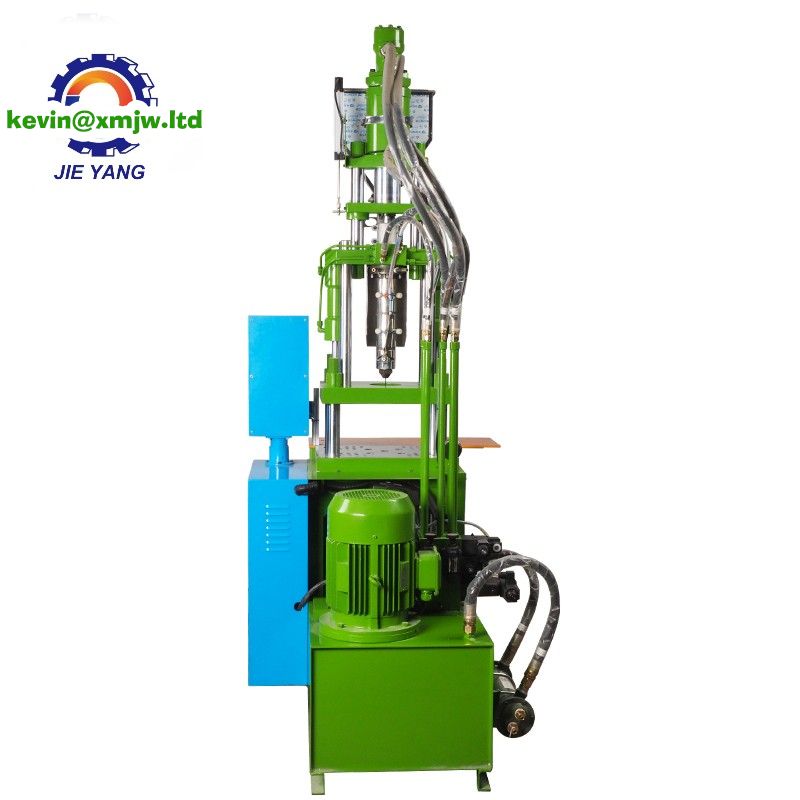

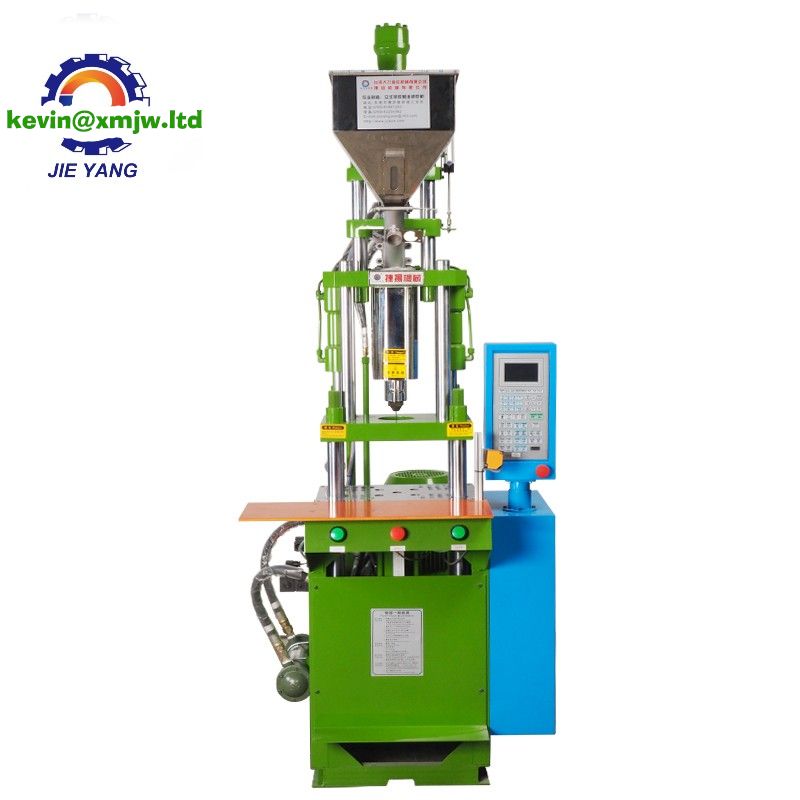

Durable Vertical Making Power Cable Buckle Retainer Fixed Buckle Clamp Injection Molding Machine

Price in reward points: 9800
  • Brand: JIEYANG
  • Product Code: CN230813663899
  • Availability: 500
- +


Product Overview

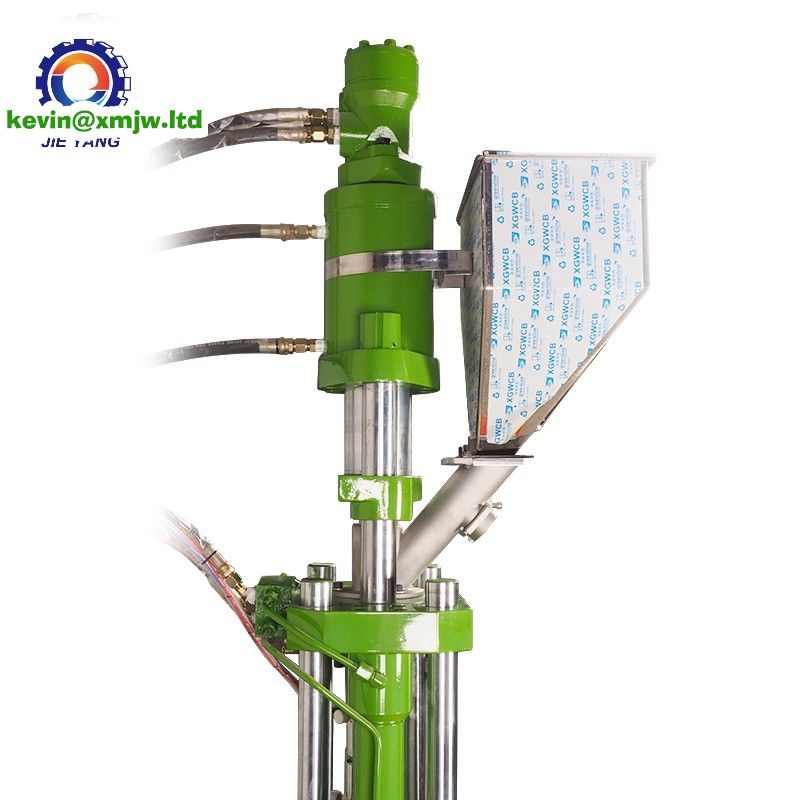

1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Adopting LCD display.
Product detail
Successful Project
Product Application
Suitable for all kinds of plugs, cables, stationary, toys, household goods, Automobile industry, medical industry, electronics industry, plastic industry and other injection molding series to meet the needs of customers.
(L*W) Platen size440*280
Applicable IndustriesHotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company
Core ComponentsBearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw
Distance between Tie Bars315*165
Ejector Force(kN)12.7 kN
Ejector Number1
Ejector Stroke(mm)25 mm
Electric Power4 HP
Injection Rate (g/s)67.7 g/s
Injection speed110 mm/s
Injection Stroke116 mm
Injection Weight (g)67.5 g
Key Selling PointsCompetitive Price
Machine Dimension(L*W)1.28*0.85 m
Machine TypeHydraulic
Machinery Test ReportProvided
Marketing TypeHigh Efficiency 2022
Max. Injection Pressure99.7 Mpa
Mold Height(mm)60 - 160 mm
NO.of Temperature Control3
Oil Tank Capacity76 L
Open Stroke(mm)185 mm
Place of OriginGuangdong;China
Power (kW)2.2 kW
Product namePlastic injection molding machine
Screw diameter (mm)28 mm
Screw Speed (rpm)0 - 190 rpm
Showroom LocationViet Nam
System Pressure13.7 Moa
Theoretical Shot Volume(cm³)71.4 cm³
TypeTube Shoulder Injection
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)800 kg
