Cable Wire Terminals Crimper Tool AM-240 3.0T Pneumatic Crimping Machine 16-240mm2 Non-insulated Cable Lug AM-70 70mm2
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230807301035
- Availability: 18000
Cable Wire Terminals Crimper Tool AM-240 3.0T Pneumatic Crimping Machine 16-240mm2 Non-insulated Cable Lug AM-70 70mm2
Parameter

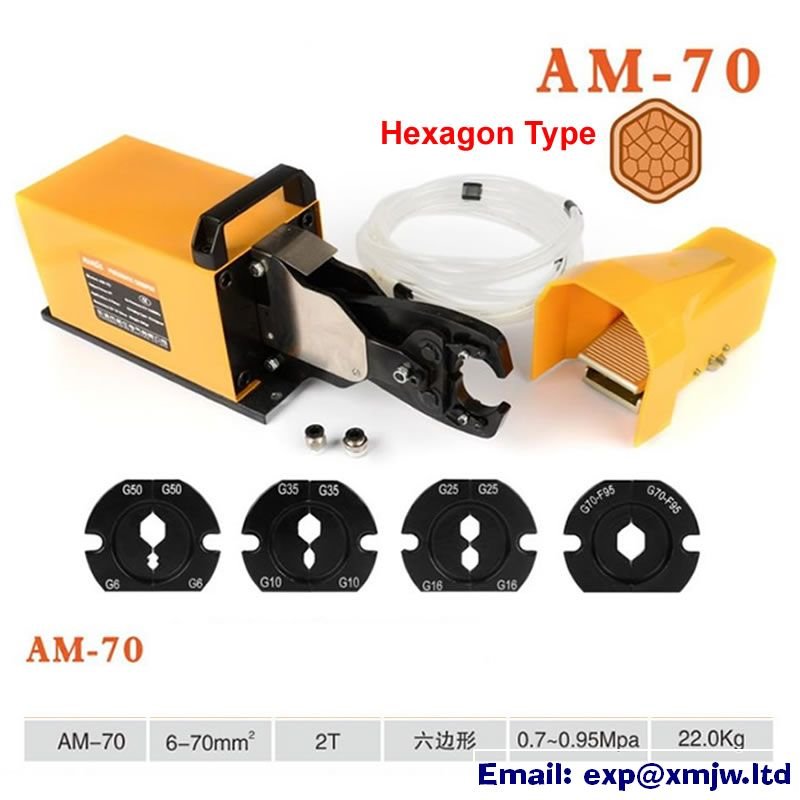

Model: AM-70
Applicable scope:6-70mm2
Appearance size: 510*150*195mm
Weight: 18 (Kg)
Working pressure:2.0T
Shape: oblique mouth
Suggested inner diameter of trachea: 10 atmospheric tubes
Tool net weight: 18 (kg)
Air pressure range: 0.8-1.0MPA
Shape after pressing: Hexagon

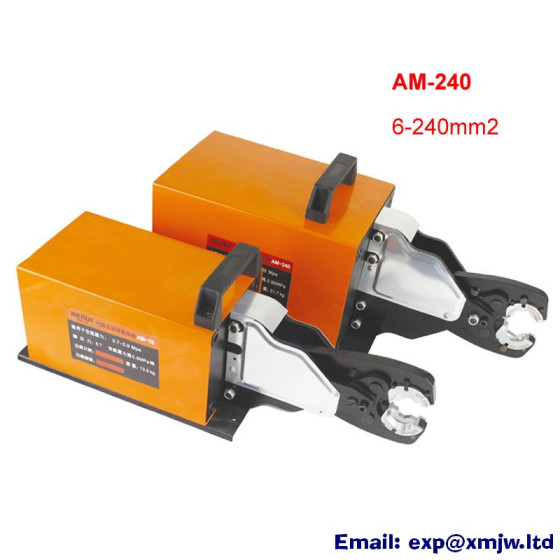

Model: AM-240
Applicable scope:6-240mm2
Weight: 27 (Kg)
Working pressure:3T
Shape: oblique mouth
Air pressure range: 0.4-1MPA
Shape after pressing: standard hexagon
| Air pressure range | 0.4-1Mpa |
| Certification | CE |
| is_customized | Yes |
| Model | AM-70 / AM-240 |
| Model Number | AM-70 / AM-240 |
| Origin | Mainland China |
| Shape | oblique mouth |
| Shape after pressing | Standard hexagon |
| Type | Crimp Terminal |
| Working pressure | 2T / 3T |
