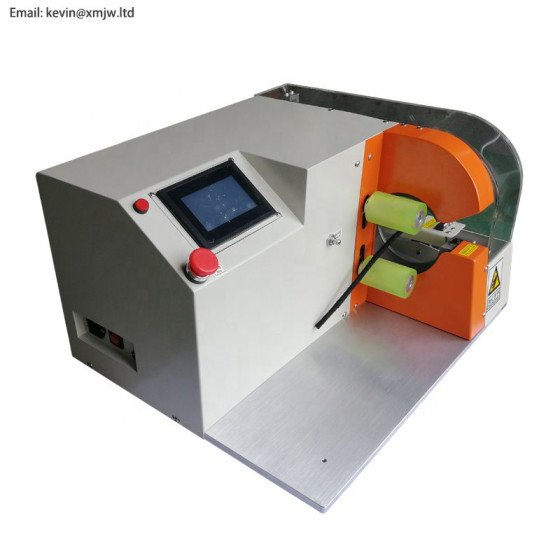

Automatic Cable Wire Harness Tape Wrapping Twisting Machine - Spot Winding
Interested in this machine? Get a quote now!
Please send an EMAIL to: kevin@cablecutting.net or fill out the inquiry form below.
Inquiry Now
Cable tape winding machine wire harness tape wrapping equipment handheld wire taping tool machine for cable
Product Description
Product Parameters
| Model | XCX-303QY |
| Name | Automatic tape winding machine |
| Winding length | No fixed length, unlimited |
| Tape width | 5~25mm( Customizable other size ) |
| Wire diameter | <40mm |
| Motor speed | 300~2500R/Min,continuously adjustable |
| Wrapping mode | Spiraling |
| Work efficiency | 130 R/Min |
| Power supply | AC220V 50/60HZ |
| Dimension | 560*500*350mm |
| Weight | 48KG |
| Function | Full wrapping, Point wrapping,Transposed wrapping |
Product Details
| Brand Name | Xingchuangxin |
| Dimension | 550*500*350MM |
| Motor speed | 300~2500 |
| Name | Automatic wire tape wrapping machine |
| Place of Origin | Guangdong;China |
| Power supply | AC220V/110V 50/60HZ |
| Tape width | 5-25 ( Support customizing ) |
| Usage | Tape winding |
| Weight | 48 |
| Winding Length | No fixed length;unlimited |
| Winding method | spiral |
| Wire diameter | 2~40mm |
| work efficiency | Winding speed 130 rpm |
Tags: Automatic cable wire harness tape wrapping cable spot winding twisting machine
