16 Square Wire Stripping Machine Sheath Wire Skin Peeling Machine 32-bit intelligent control system LCD English display

Price in reward points: 3521
  • Brand: unbranded
  • Product Code: CN230809545547
  • Availability: 412
- +

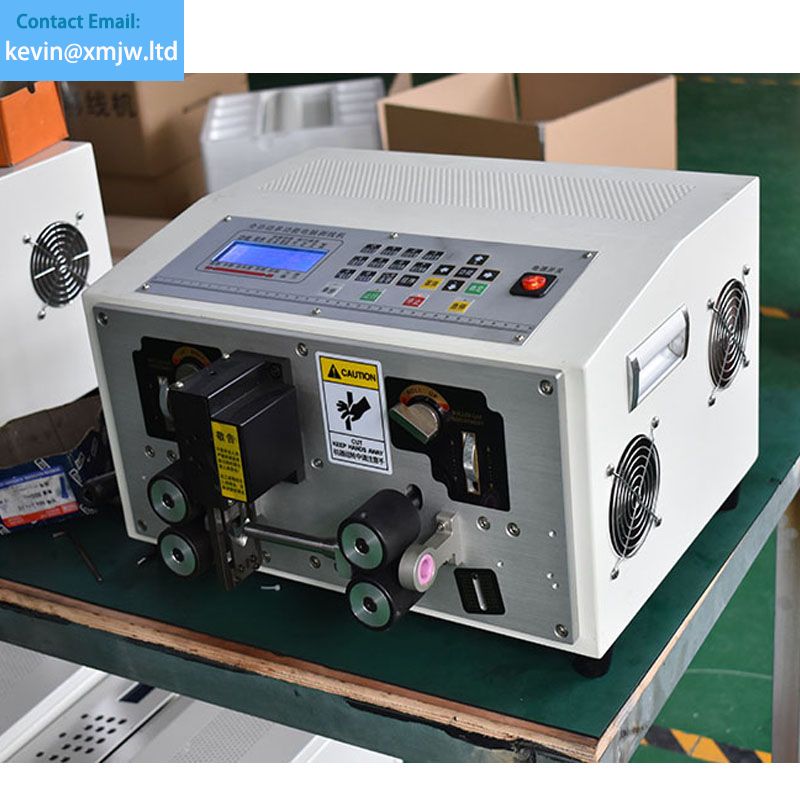

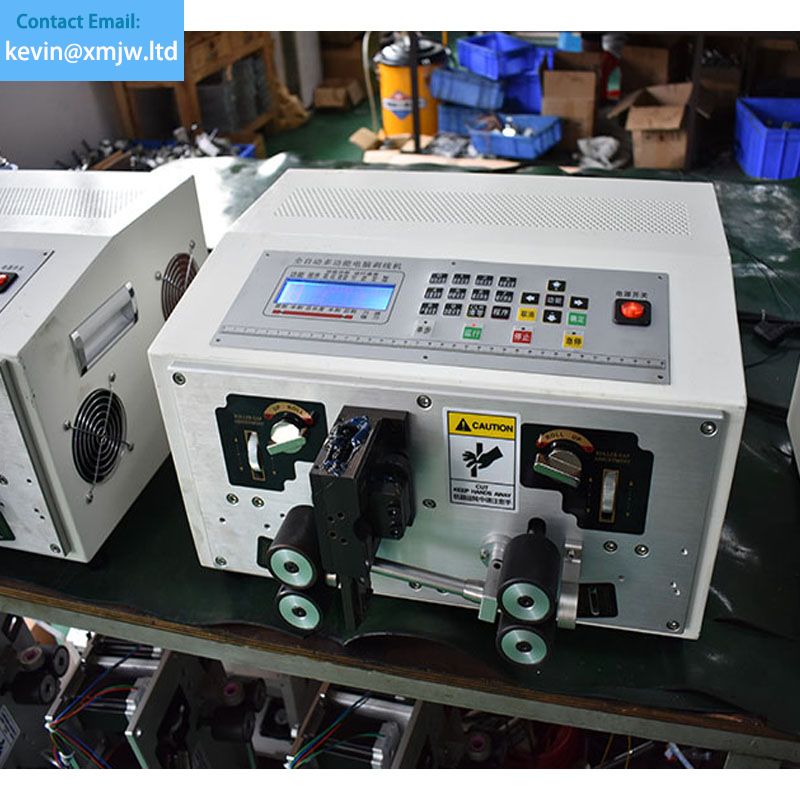

16 Square Wire Stripping Machine Sheath Wire Skin Peeling Machine

This machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle parts, etc. With a microcomputer controlled very clean designed mechanism, it cuts and strips wire automatically. The direct and easy-to-use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boost the productivity.
1.-This machine adopts a 32-bit intelligent control system, Chinese and English switching LCD display frequency, press-build operation can store hundreds of information, recall at any time, fast efficiency.
2.- Four wheels are driven at the same time, the gear is cut, the knife cut is neat, and the stripping quality is stable.
3.- Life span of 3 million time, no damage to the core
4.- Freely set two strips, mltiple strips in the middle , half strips, cut lines, etc
5.-Use 10 rounds of straightener, more precise, improving work quality and efficiency.

Product Description

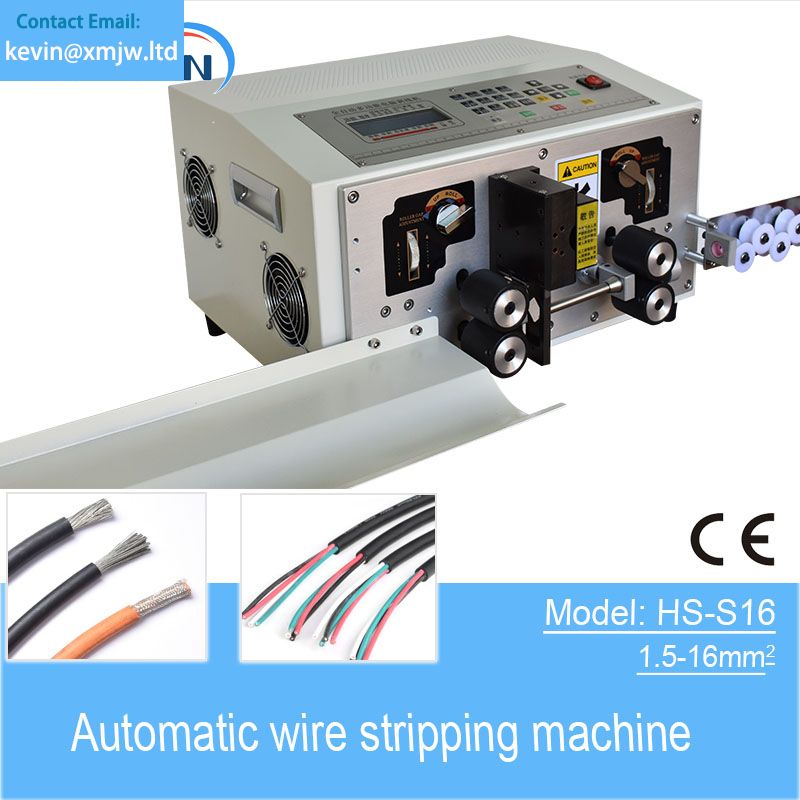

Model HS-S16
Power supply AC220V50/60HZ
Function Wire cutting, double-end stripping, middle stripping , twist
Wire range 1.5-16mm2
Size 48*46*32cm
Cutting length 0.1mm-99999.9mm
weight 38kg
Stripping length head 0.1-100mm, stripping tail 0.1-100mm
Blade material Imported tungsten steel / high speed steel
Middle strip 13 segments
Capacity 2000-3000pcs/h
Display method LCD English display
Remarks Function Automatic in/out, timing start, jog adjustment
Power 6300W

FunctionWire cutting;double-end stripping;middle stripping;twist
HS Code8479899990
Model NumberHS-S16
OriginMainland China
Transport PackageExport Wooden Packing & Carton Packing
Wire Range1.5-16mm2
