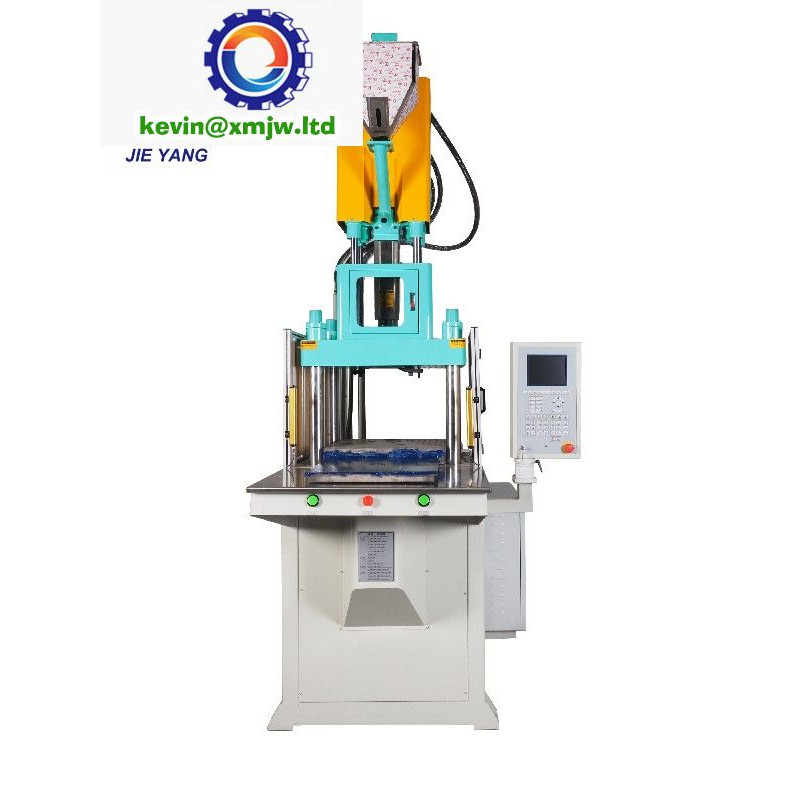

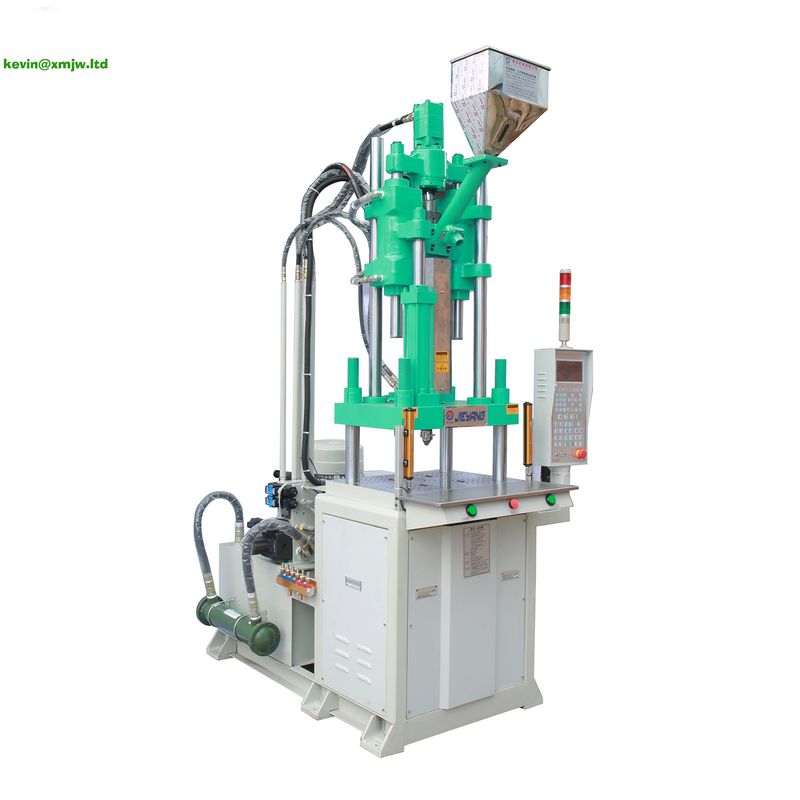

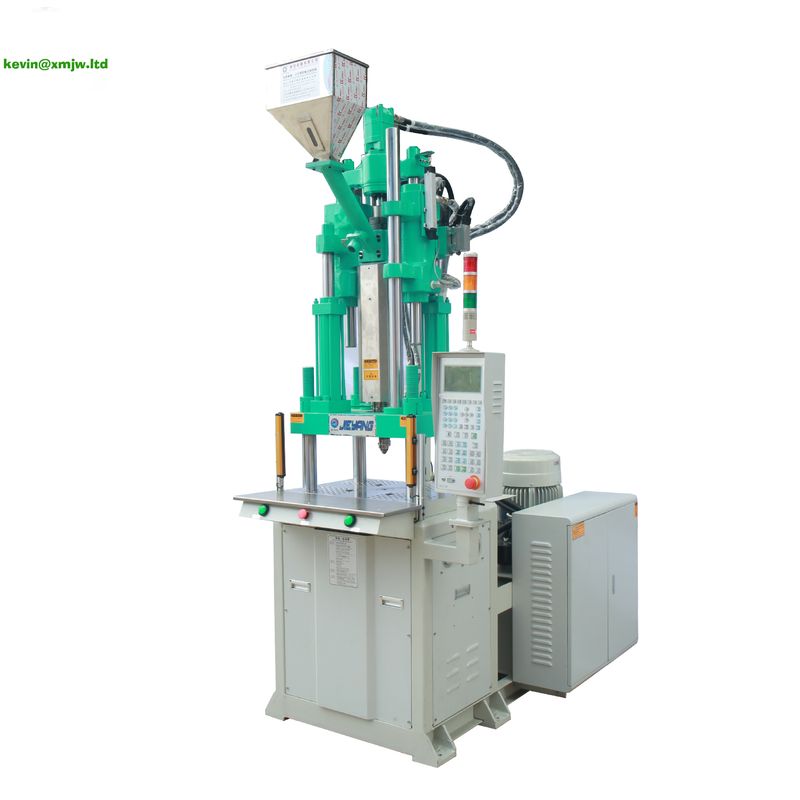

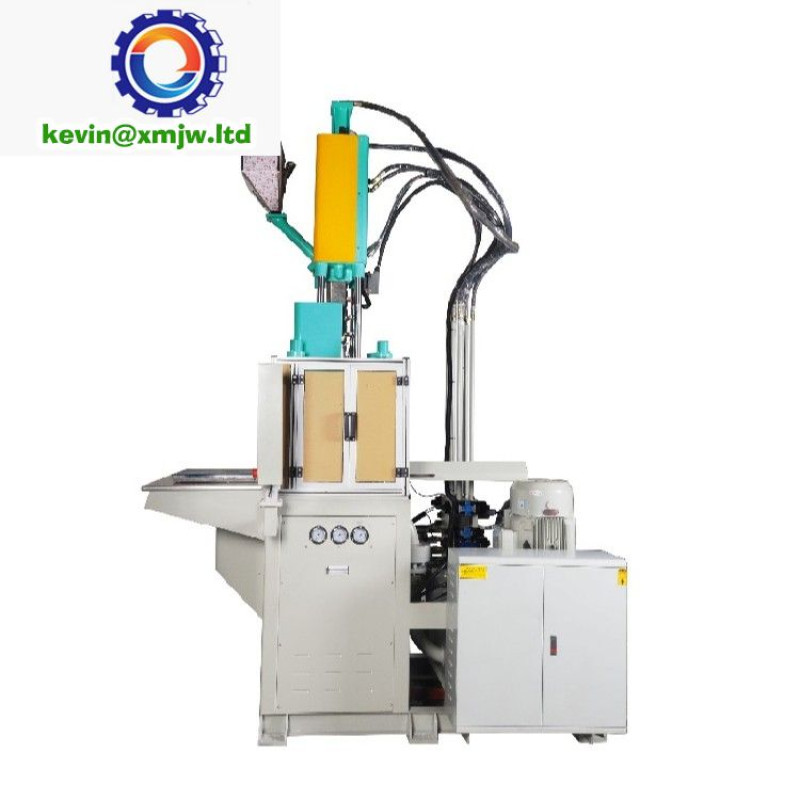

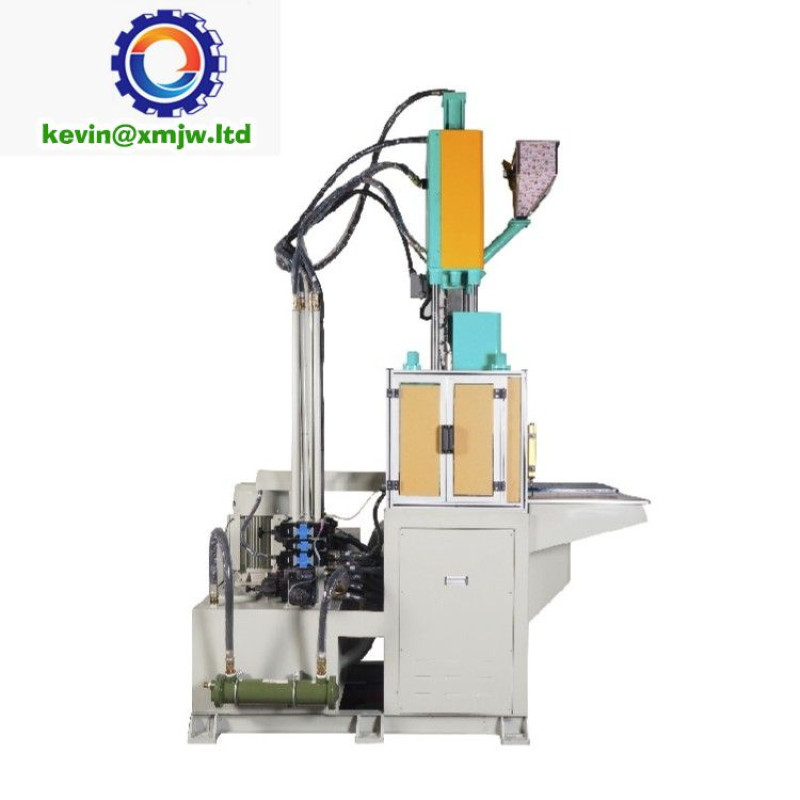

Swimming glasses Injection Molding Machine vertical injection molding machine plastic product
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813875982
- Availability: 500
Factory direct sale phone case injection molding machine vertical injection molding machine plastic product
For the wearing parts of the injection molding machine, such as heating cores and buttons, we will come with a set of them!
Specification
| Model | Unit | JY-350ST-D | JY-450ST-D | ||||
| Screw Barrel Diameter | mm | 26 | 28 | 30 | 30 | 32 | 34 |
| Injection Pressure | kg/cm2 | 2319 | 2000 | 1742 | 1742 | 1531 | 1356 |
| Max. Shot Weight | gram | 66.3 | 72.6 | 83.4 | 98.9 | 112.5 | 127 |
| Max. Shot Weight | cm3/sec | 53 | 60.5 | 72 | 53 | 60.3 | 72 |
| Screw Barrel Route | mm | 140 | 200 | ||||
| Screw Barrel Rotary Speed | rpm | 190 | 0-200 | ||||
| Clamping Force | tons | 35 | 45 | ||||
| Slide Platen Size | mm | 350*350 | 390*420 | ||||
| Distance Between Tie Bere | mm | 525*325 | 635*425 | ||||
| Min. Mold Height | mm | 80/180 | 120/220 | ||||
| Opening Stroke | mm | 200 | 200 | ||||
| Max. Opening Mold Distance | mm | 280/380 | 350/420 | ||||
| Ejetor Force | tons | 1.5 | 1.5 | ||||
| Ejetor Stoke | mm | 85 | 85 | ||||
| Max. Hydraulic Pressure | kg/cm2 | 140 | 140 | ||||
| Pump Output | L/min | 47 | 56 | ||||
| Oil Resservoir Capacity | Liter | 80 | 120 | ||||
| Cooling Water Consumption | L/hr | 800-1000 | 1000-1200 | ||||
| Pump Motor Power | kw/hp | 4/5.5HP | 5.5/7.5HP | ||||
| Barrel Heating Power | kw | 2.4 | 3.4 | ||||
| Total Power | kw | 6 | 9 | ||||
| Machine Weight | tons | 1.55 | 1.8 | ||||
| Machine Dimension(LxWxH) | meter | 1.04*1.6*2.97 | 1.72*1.1*2.26 | ||||
| Shipping Weight | tons | 5.4 | 6.7 | ||||
| Shipping Measurements(LxWxH) | meter | 2.2*1.9*2.7 | 2.5*2.1*2.9 | ||||
For this style we have two standard colors above,If you have color requirements, we can also customize
Applications:
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Building Material Shops;Silicone products;medical industry;plastic industry |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Motor |
| Distance Between Tie Bere | 560*370mm |
| Ejector Force | 2.7Tons |
| Ejector Force(kN) | 13.7 kN |
| Ejector Number | 1 |
| Ejector Stoke | 60mm |
| Ejector Stroke(mm) | 60 mm |
| Injection Rate (g/s) | 142.4 g/s |
| Injection Weight (g) | 240 g |
| Key Selling Points | High Productivity |
| Machine Dimensions(LxWxH) | 1.88*1.38*2.75/3.51m |
| Machine Type | Hydraulic;plastic injection machine;Vertical silicone injection molding machine |
| Machine weight | 4.2Tons |
| Machinery Test Report | Provided |
| Max.Open daylight420/27 | 480mm |
| Min.Mold Height | 230/330mm |
| Mold Height(mm) | 230 - 330 mm |
| Open Stroke(mm) | 250 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;Bakelite |
| Power (kW) | 6.4 KW |
| Screw diameter | 45mm |
| Screw diameter (mm) | 45 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Turkey;France;Viet Nam;Philippines;Saudi Arabia;India;Mexico;Russia;Spain;Argentina;Chile;UAE;Colombia;Romania;South Africa;Ukraine;Malaysia |
| Slide Plate Size | 750*560mm |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 254.3 cm³ |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 4200 kg |
